What Are The Different Kinds of Water Chillers Available?

As an efficient industrial and commercial refrigeration solution, the core function of water chillers is to cool water to the required temperature through a refrigeration cycle to meet the cooling needs of various production and commercial environments. In this article, Ruidong will introduce different types of products to help you make the best choice based on your specific needs.

First of all, do you know their basic structure? Let's take a look.

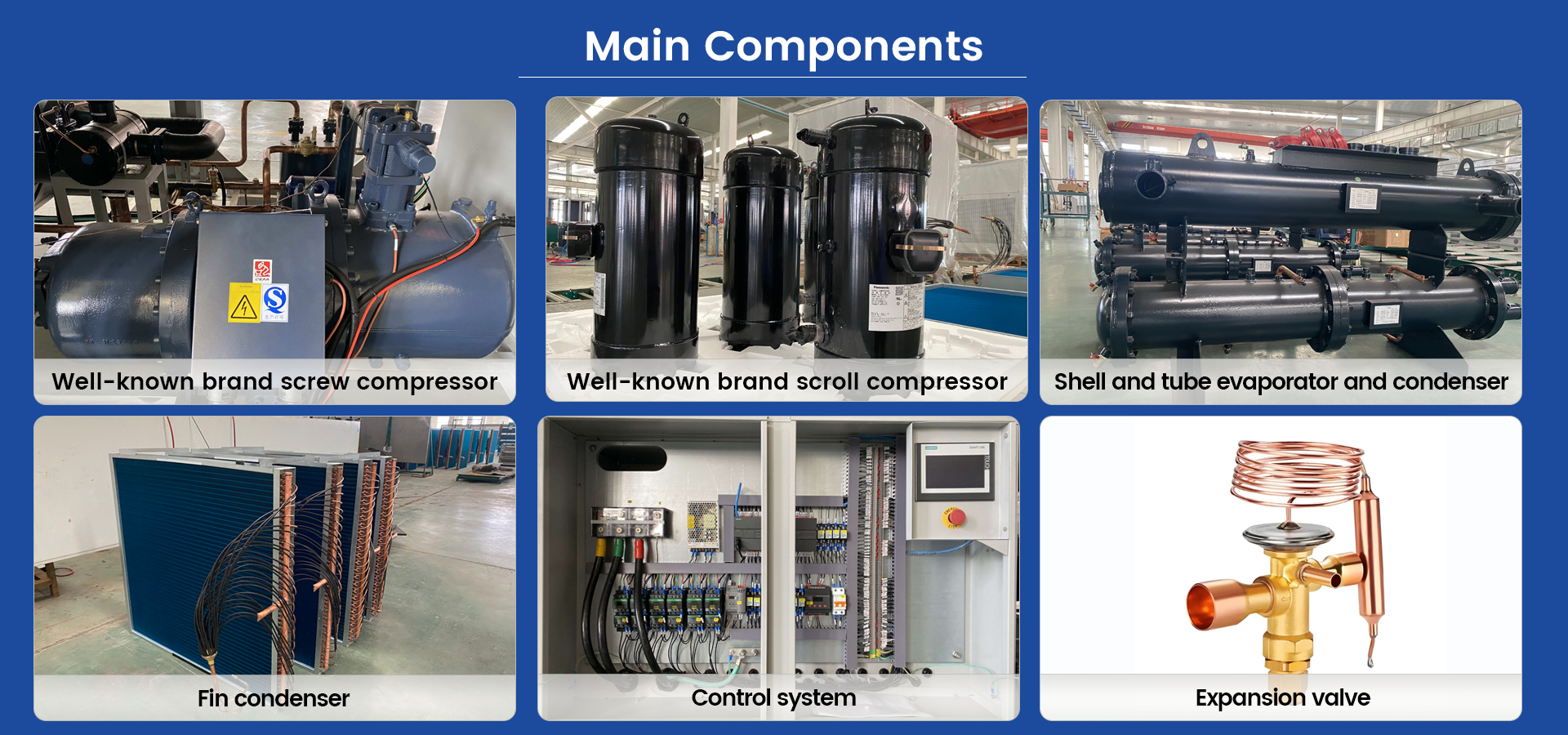

Water chillers are mainly composed of five parts: compressor, condenser, expansion valve, evaporator and control system.

1. The compressor is responsible for compressing the low-temperature and low-pressure refrigerant into high-temperature and high-pressure gas.

2. The condenser is responsible for cooling the high-temperature and high-pressure gas into high-pressure liquid.

3. The expansion valve expands the high-pressure liquid into a low-temperature and low-pressure liquid to absorb heat in the evaporator.

4. The evaporator cools the water to the required temperature through heat exchange between the refrigerant and the water.

5. Finally, the control system monitors and controls the operation of the entire system to ensure that the system works properly.

So how does a water chiller work?

The operation of a water chiller is grounded in two interlinked cycles: the refrigeration cycle and the water circulation cycle.

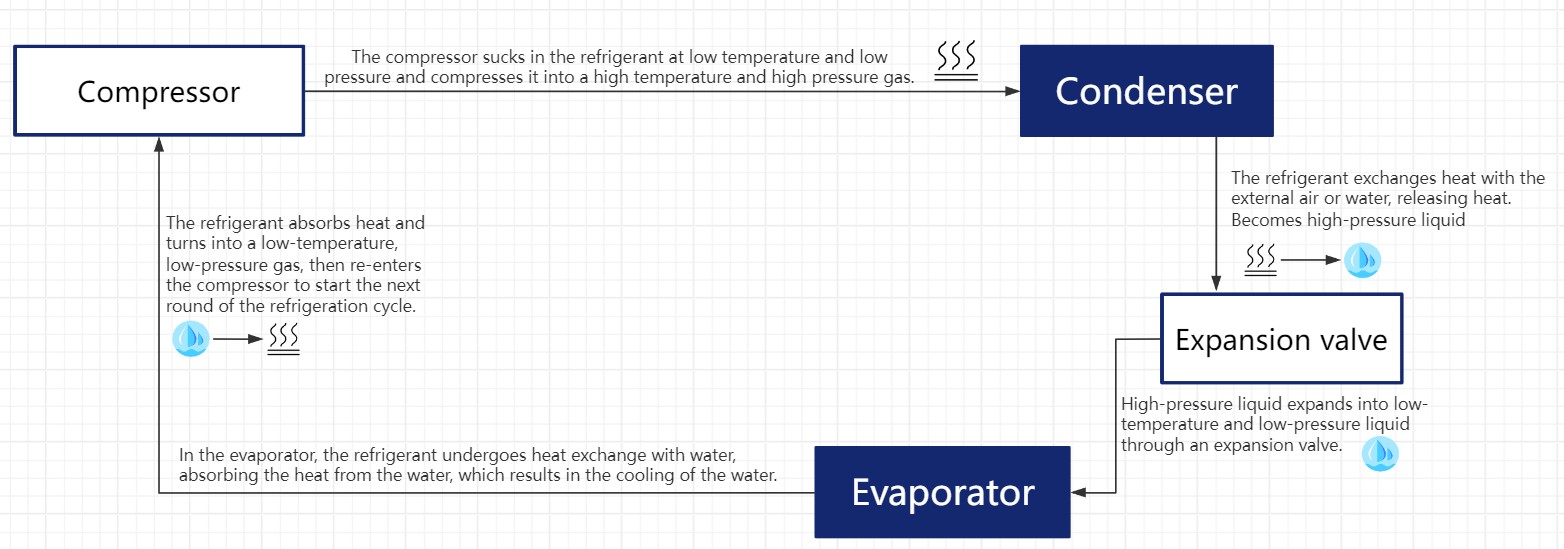

**Refrigeration Cycle:**

1. The compressor draws in the low-temperature, low-pressure refrigerant and compresses it into a high-temperature, high-pressure gas that is sent to the condenser.

2. Within the condenser, the refrigerant releases heat to the external air or water through heat exchange, transforming into a high-pressure liquid.

3. The high-pressure liquid then flows through the expansion valve, where it becomes a low-temperature, low-pressure liquid, before entering the evaporator.

4. In the evaporator, the refrigerant absorbs heat from the water through heat exchange, cooling the water. After heat absorption, the refrigerant turns into a low-temperature, low-pressure gas and returns to the compressor to initiate another refrigeration cycle.

**Water Circulation Cycle:**

1. Cooling water is pumped by a circulating water pump from the chiller to the condenser, where it absorbs heat released by the refrigerant.

2. The warmed cooling water is then directed to a cooling tower or other heat dissipation equipment, where it releases heat and its temperature drops.

3. After heat dissipation, the cooled water circulates back to the condenser to engage in another round of heat exchange, and the cycle continues.

After understanding the basic components and working principles of the chiller, let's take a look at the type of chillers to help you make a better choice.

Classification Based on Condenser Types:

The condenser plays a crucial role in the chiller system, effectively removing heat from the system. Currently, there are two main types of condensers—air-cooled and water-cooled.

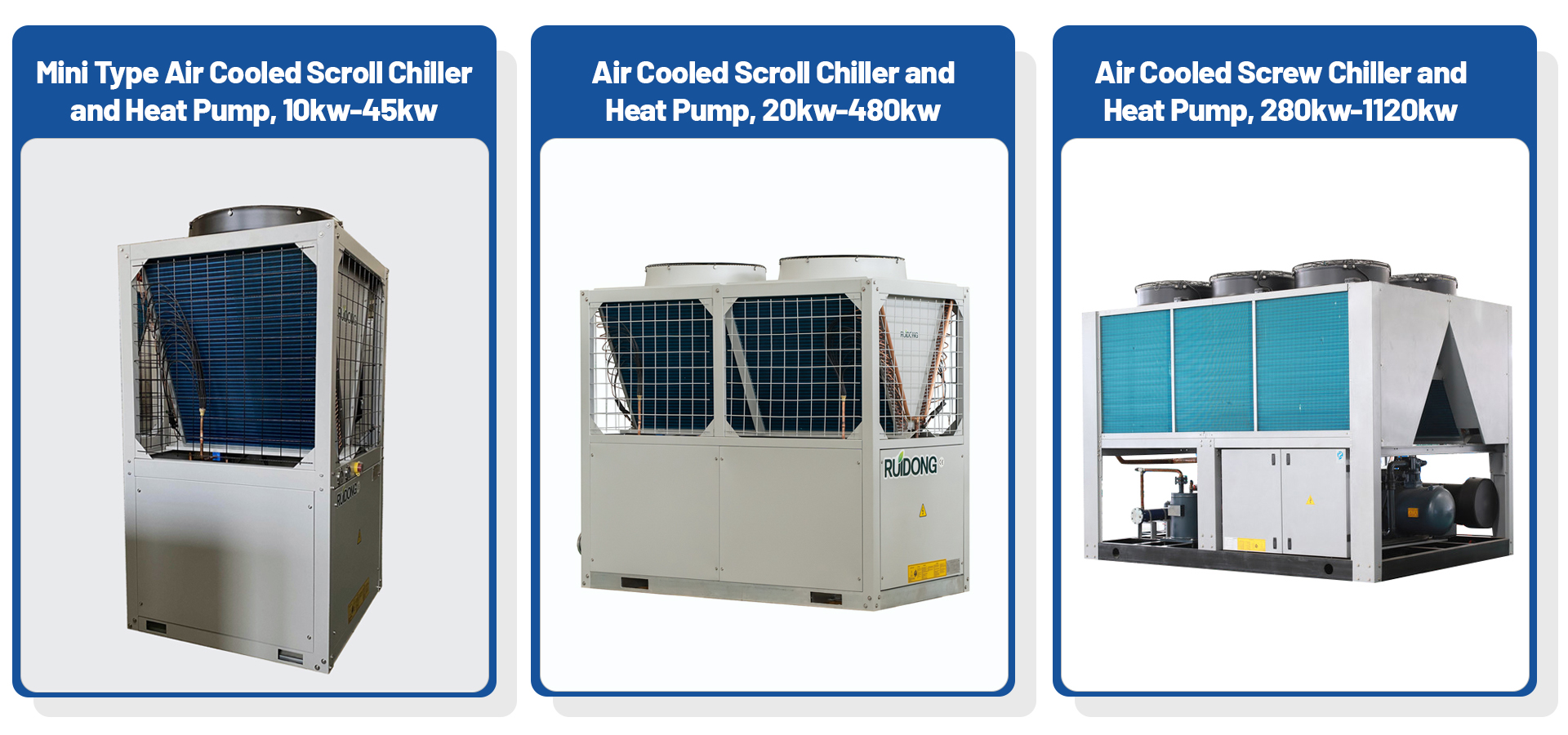

**Air-Cooled Chiller Systems**

Air-cooled chillers utilize the surrounding air to cool and condense refrigerant, making them ideal for smaller to medium-scale cooling needs. Typically installed outdoors, these chillers use fans to direct air over heat exchangers, promoting efficient heat release.

These chillers offer a simple and cost-effective installation method, eliminating the need for additional cooling towers or condensate pumps. With relatively low maintenance requirements, they are becoming increasingly popular in settings where water scarcity is a concern or where water access is inconvenient.

Ruidong Group's air-cooled chiller series includes both air-cooled scroll chillers and air-cooled screw chillers, covering a wide range of cooling capacities to meet your diverse needs. All our unit components are sourced from internationally renowned brands, ensuring the outstanding quality and reliability of our products.

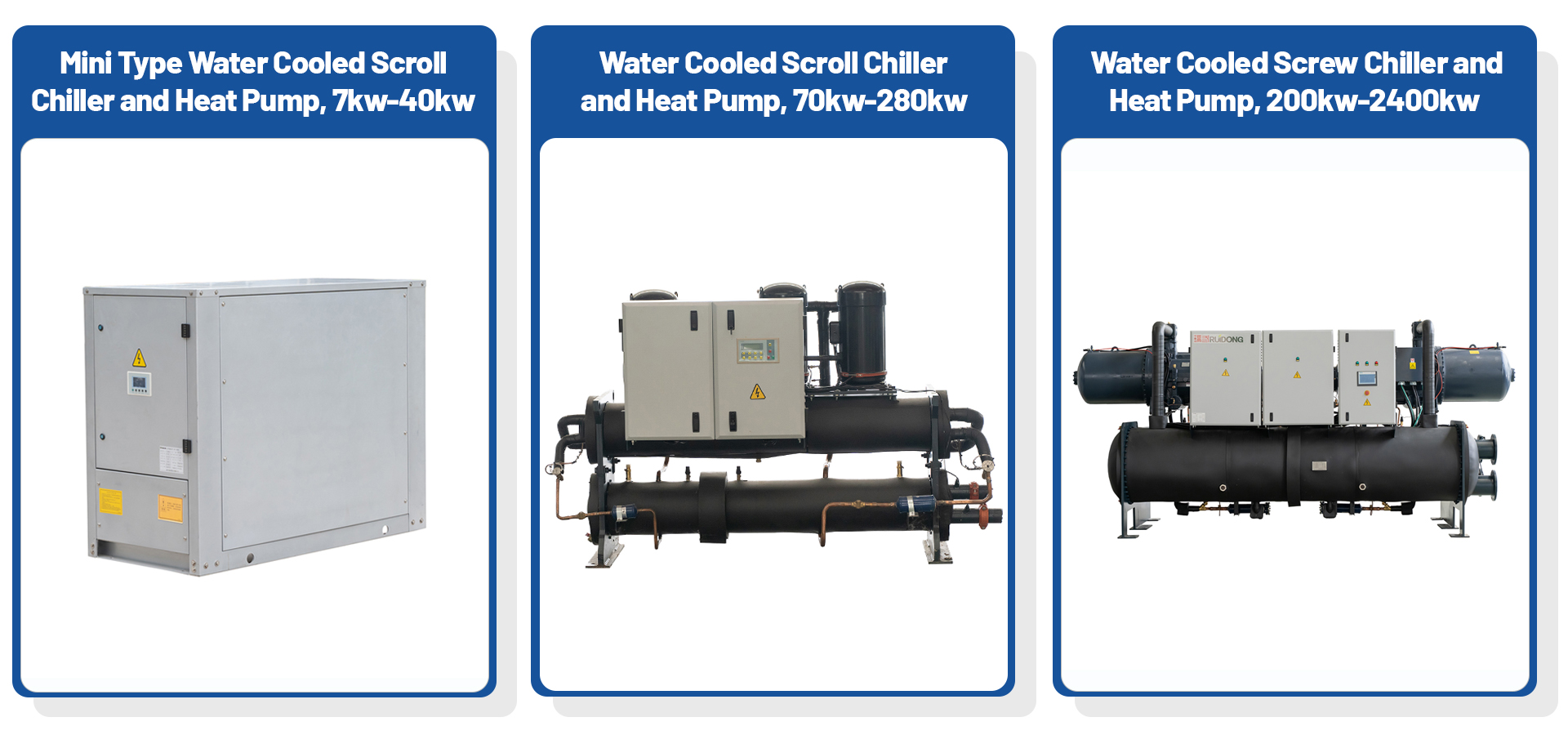

**Water-Cooled Chiller Systems**

Water-cooled chillers differ from air-cooled chillers in that they use cooling towers to enhance thermodynamic efficiency, making them particularly suitable for large-scale commercial buildings or industrial facilities with extensive cooling needs.

Water-cooled chiller units generally dissipate waste heat to the atmosphere through cooling towers. This process involves the evaporation of water at low pressure, which promotes efficient heat absorption.

Water-cooled chillers are generally better than air-cooled chillers in terms of energy efficiency and operating noise, but they require regular maintenance. Maintenance work includes treating the condenser water to prevent microbial growth and mineral deposition. If a heat recovery system can utilize the discharged heat, water-cooled chillers become an excellent choice.

Ruidong Group can also manufacture and supply a wide range of high-quality water-cooled chillers, including water-cooled scroll chillers and water-cooled screw chillers, ensuring optimal performance and efficiency for a variety of cooling needs.

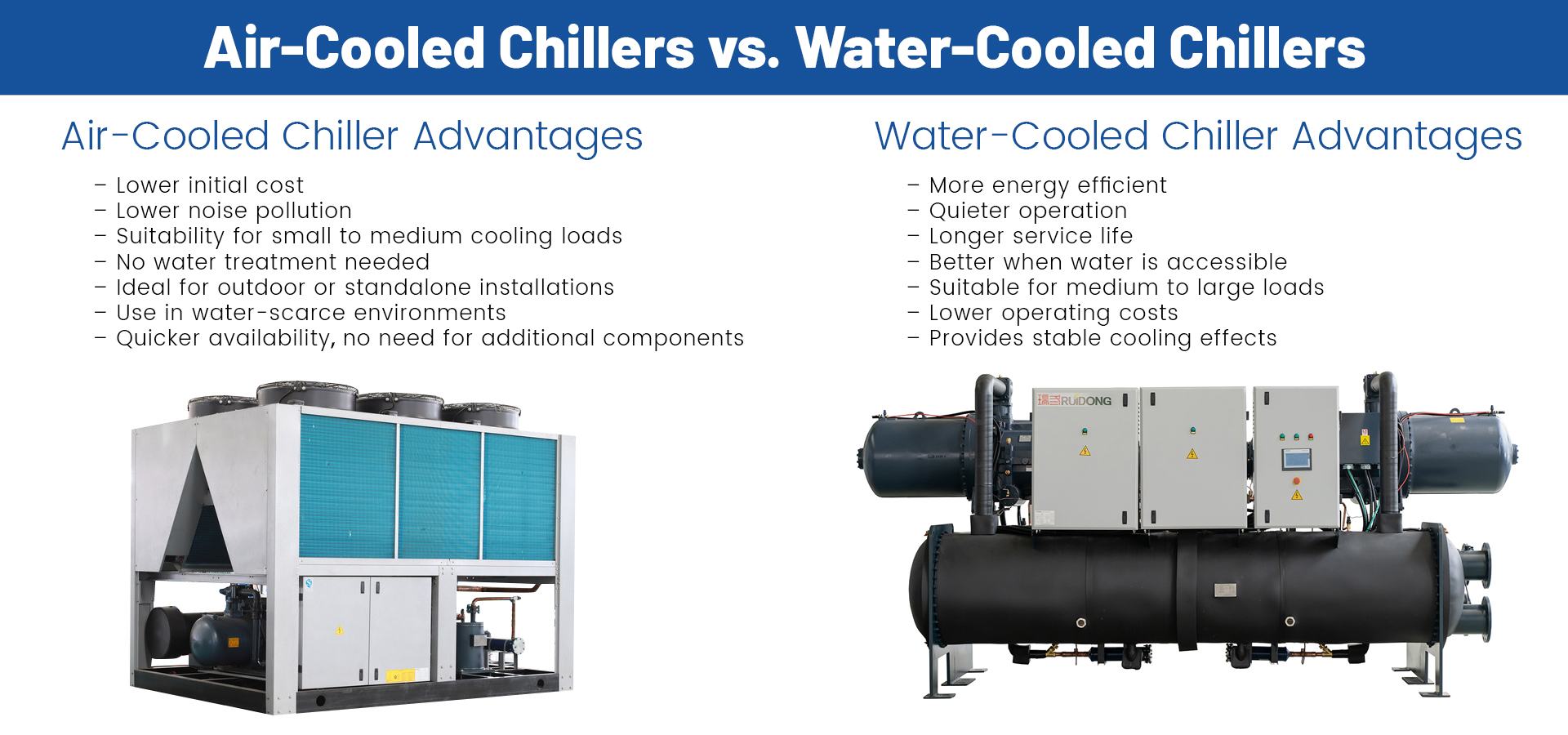

**Comparison between air-cooled chillers and water-cooled chillers**

Classification by Cooling Capacity:

The cooling capacity of a chiller is a key parameter that determines its applicability. Measured in tons or BTUs (British Thermal Units) per hour, the cooling capacity indicates how much heat the chiller can remove within a specific period. Chillers are typically classified as follows:

**Small Capacity Chillers**

Chillers with a cooling capacity between 0.2 tons and 25 tons are considered small capacity  chillers. These chillers are compact in size and are often portable. They are well-suited for  small-scale applications such as laboratory cooling, small-scale manufacturing processes,  medical applications, and cooling needs in the food and beverage industry.

**Medium Capacity Chillers**

Chillers with a cooling capacity ranging from 30 tons to 200 tons fall into the category of  medium capacity chillers. These are suitable for larger commercial applications, including  building HVAC systems, industrial cooling processes, and data center cooling applications.

**Large Capacity Chillers**

Chillers with a cooling capacity exceeding 210 tons are classified as large capacity chillers.  These are typically designed for large-scale industrial applications and district cooling  systems. Given their size, these chillers are usually custom-built to meet the specific  requirements of the application.

Classification by Refrigeration Cycle:

The working principle of a chiller is based on its refrigeration cycle, which describes how the system transfers heat energy. The refrigeration cycle is directly related to the type of compressor used, and understanding this classification is crucial for grasping the operation of the chiller and determining its appropriate applications.

**Reciprocating Chillers**

Reciprocating chillers utilize a reciprocating compressor, functioning similarly to a car engine.  The refrigerant is compressed through the piston's motion within a cylinder. These chillers  are typically suited for small to medium-sized applications due to their precise temperature  control and adaptability to varying load conditions.

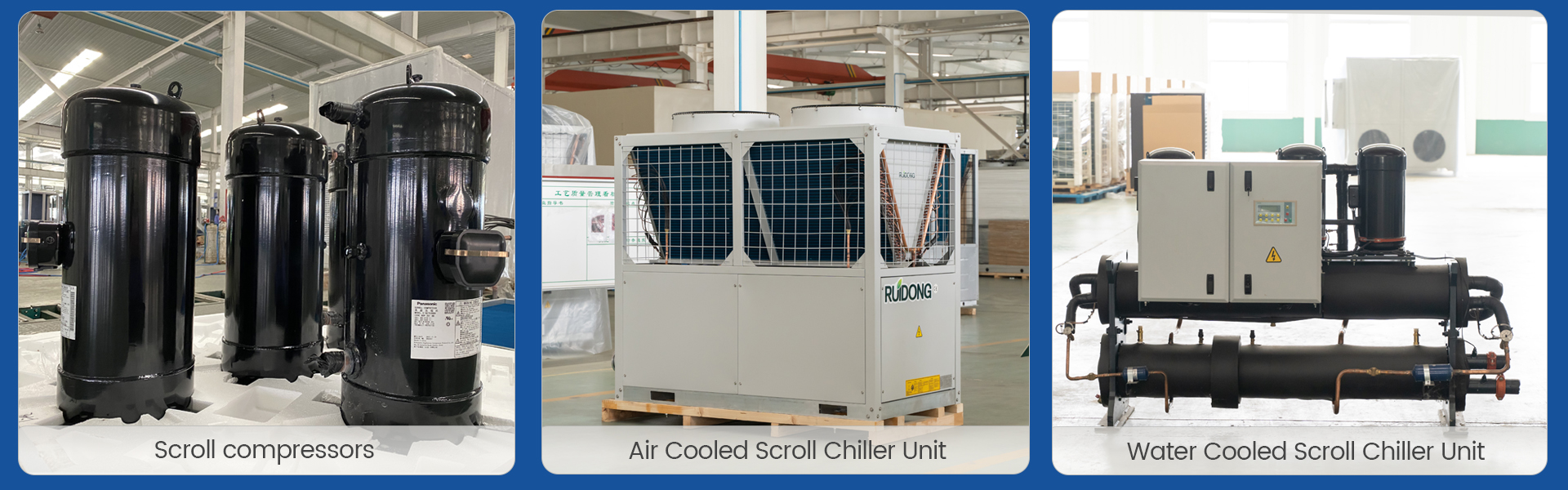

**Scroll Chillers**

Scroll chillers employ scroll compressors, which consist of two interlocking spiral  components. One scroll remains stationary while the other orbits, compressing the  refrigerant towards the center. Known for their quiet operation and high efficiency, scroll chillers are ideal for medium-sized applications and can effectively manage fluctuating loads.

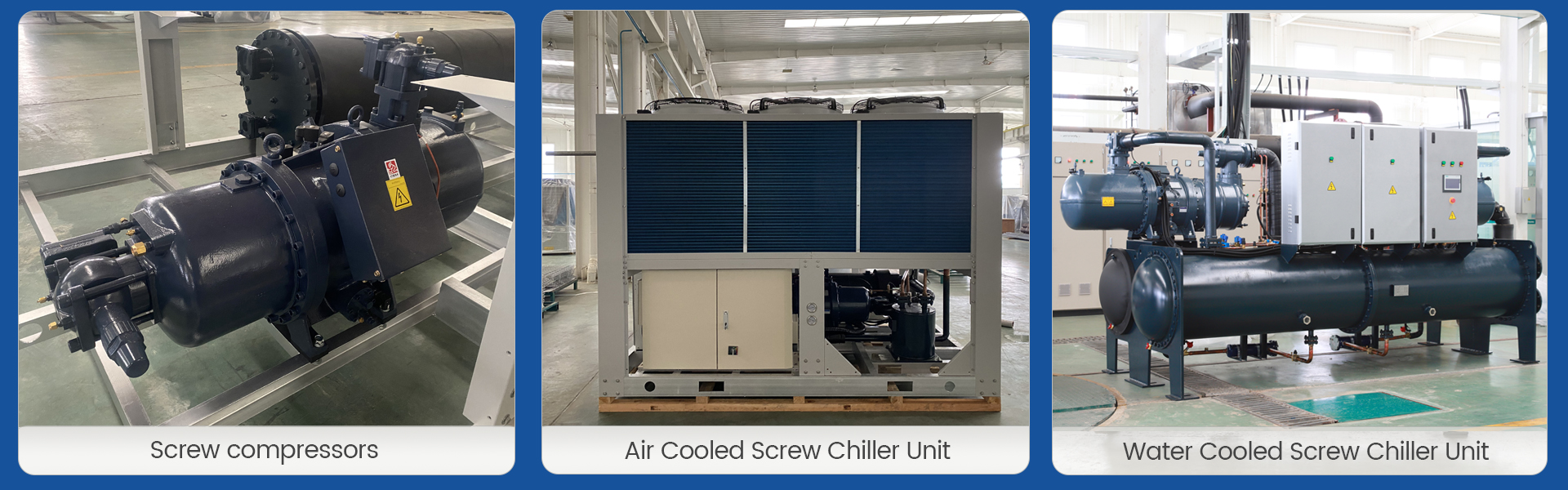

**Screw Chillers**

Screw chillers use screw compressors featuring two intertwined spiral rotors. As these rotors  turn, the volume for the refrigerant decreases, resulting in compression. They are often chosen for large-scale commercial and industrial applications due to their high efficiency and reliability, capable of handling significant and constant cooling demands.

**Centrifugal Chillers**

Centrifugal chillers rely on a centrifugal compressor, where the refrigerant is compressed by  an impeller rotating at high speeds. These chillers are suitable for large refrigeration loads,  delivering substantial cooling capacity while maintaining high efficiency. They are commonly  used in applications requiring continuous operation and high cooling outputs, such as large  industrial processes and commercial buildings.

In summary, there are many types of chillers on the market, each with its own unique features and advantages to meet different cooling needs. Whether you need a compact, portable chiller for small applications or a large chiller customized for industrial processes, understanding these classifications will help you make the most appropriate choice for your specific needs.
