Packaged Cooling System: Your Convenient Cooling Solution

Ruidong Group's newly launched Packaged Chilling System is an integrated cooling solution that integrates cooling, water pumps, and control functions into one unit, which can operate with just a power supply and connections for the condenser/chilled water. The system offers both air-cooled and water-cooled cooling methods to meet different environmental and customer needs.

The Air-Cooled Packaged Chilling System Includes the Following Components:

- Compressor and Evaporator

- Remote Condenser

- Water Tank

- Water Pump

- Piping and Valves

- Integrated Control System

- Ventilation System

- Lighting Facilities

The Water-Cooled Packaged Chilling System Includes the Following Components:

- Water-cooled chiller

- Water tank

- Water pump

- Pipes and valves

- Integrated control system

- Ventilation system

- Lighting facilities

- Cooling tower

These units feature a modular design, allowing for easy transport and rapid deployment to indoor or outdoor locations around the world.

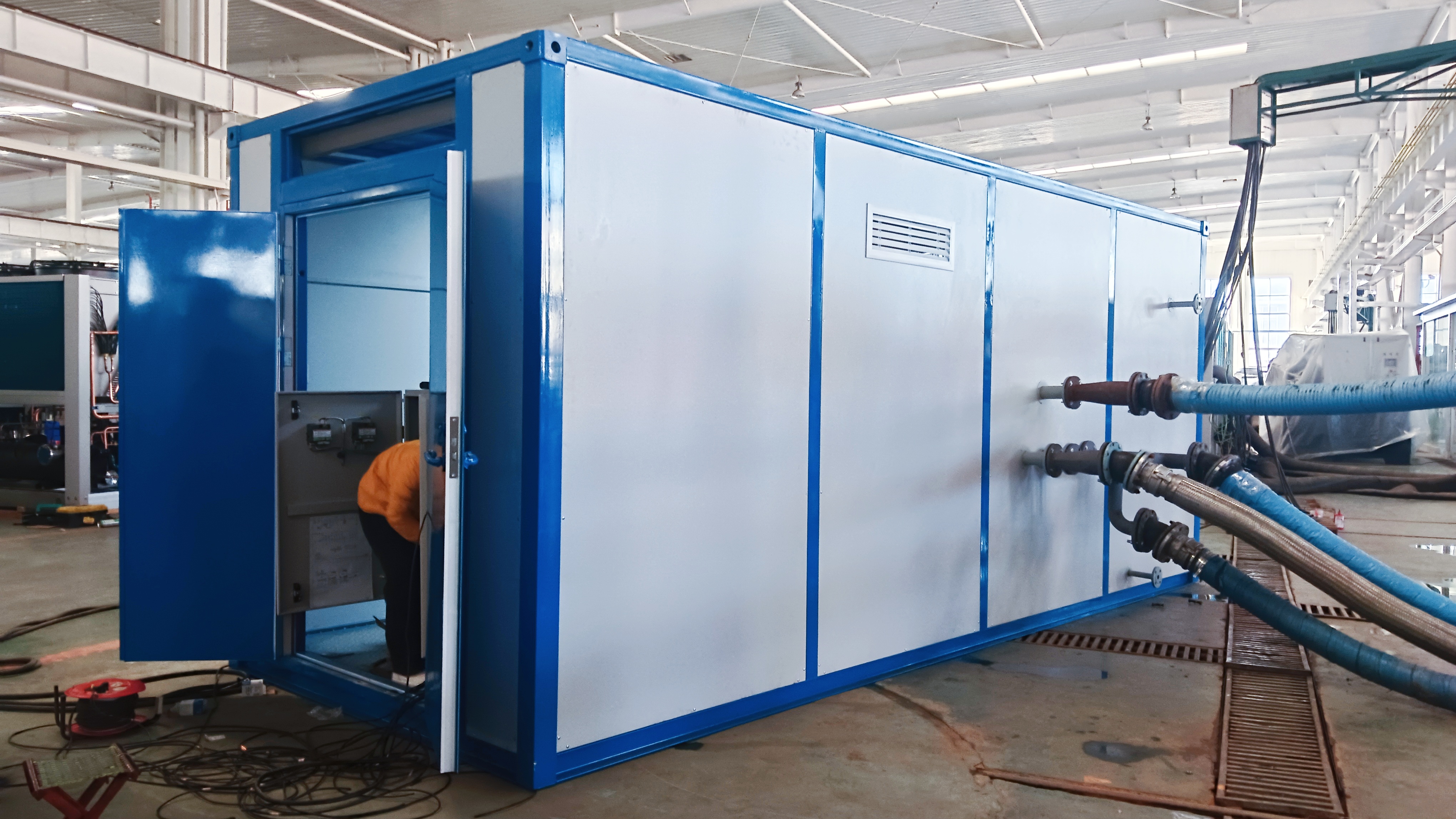

Figure 1- Unit test

**Unit Features**:

1. The packaging concept of the unit is convenient for transportation and installation.

2. Manufactured in the factory to reduce initial costs.

3. No need for a dedicated machine room, saving space and construction costs.

4. Strict testing before leaving the factory to ensure 100% qualification.

5. High maintainability to reduce long-term operational costs.

6. Fast delivery and ready for use.

7. High-efficiency design to ensure energy efficiency advantages.

8. Adopt environmentally friendly R134a/R407c/R410a/R404a/R507a refrigerants to meet environmental protection requirements.

9. Provides a variety of voltage/phase and environmental options.

**Core Component**:

The heart of the Packaged Cooling System is the compressor, which uses high-efficiency screw or scroll types from top brands to guarantee high performance and long-lasting reliability. You can select the type and quantity of compressors as needed. Each unit is an independent cooling circuit, allowing for flexible operation and  serve as a backup for each other.

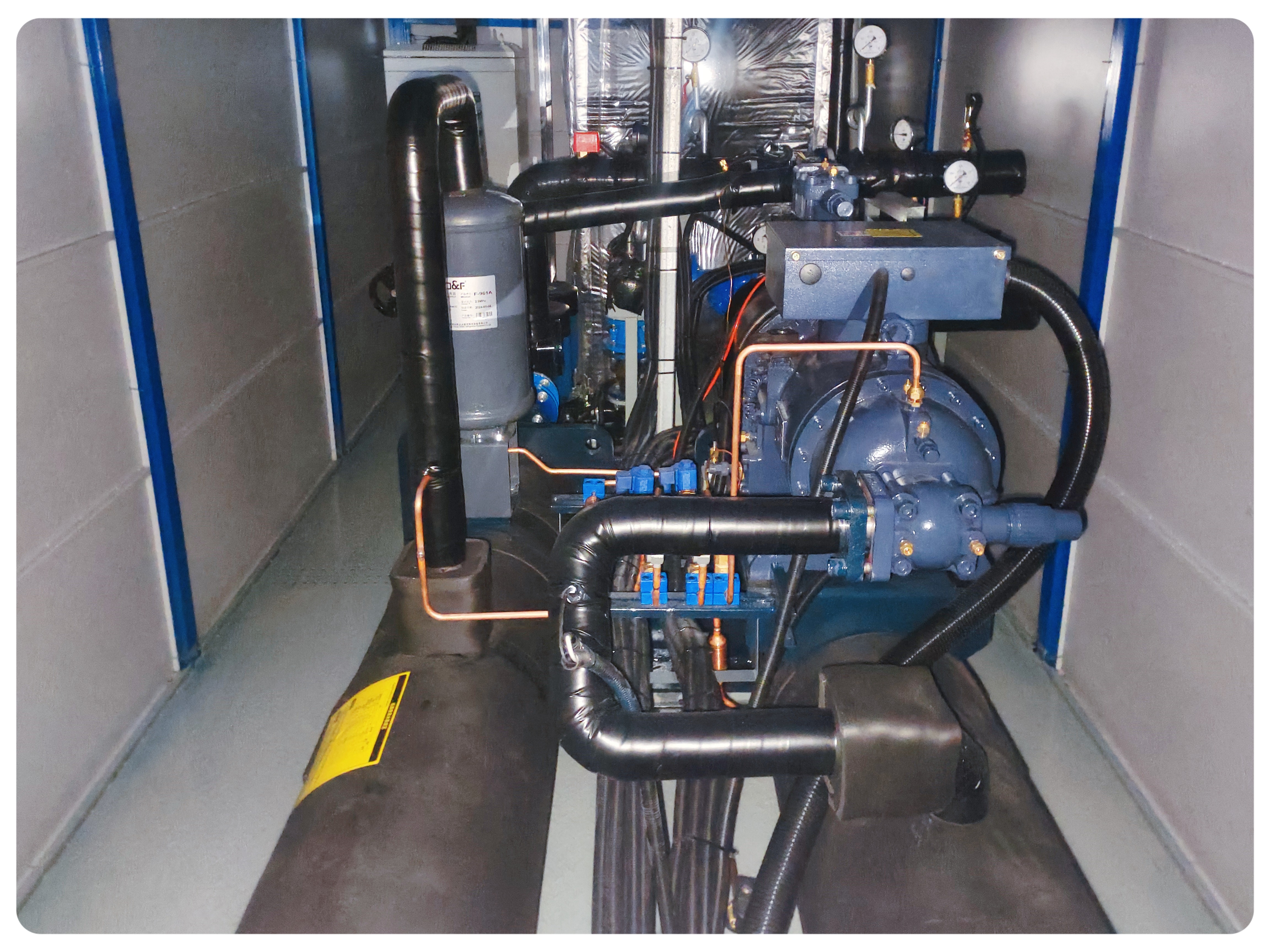

Figure 2- Indoor chiller part

**Prefabricated piping**:

The prefabricated piping of the Packaged Cooling System solves the problems of increased costs and construction delays in traditional chiller installations. On-site work is limited to module positioning, fixing and interface connection, which simplifies the installation process and improves construction reliability and predictability.

The integrated piping unit of the Packaged chilling system usually includes:

- Water pump

- Anti-vibration flexible joint

- Vent valve

- Drain valve

- Check valve

- Filter

- Butterfly valve/shutoff valve

- Pressure gauge

- Thermometer

- Intelligent electrical control system for interfacing with customers

- Water tank and other accessories.

All of these add up to make installation fast, simple and predictable.

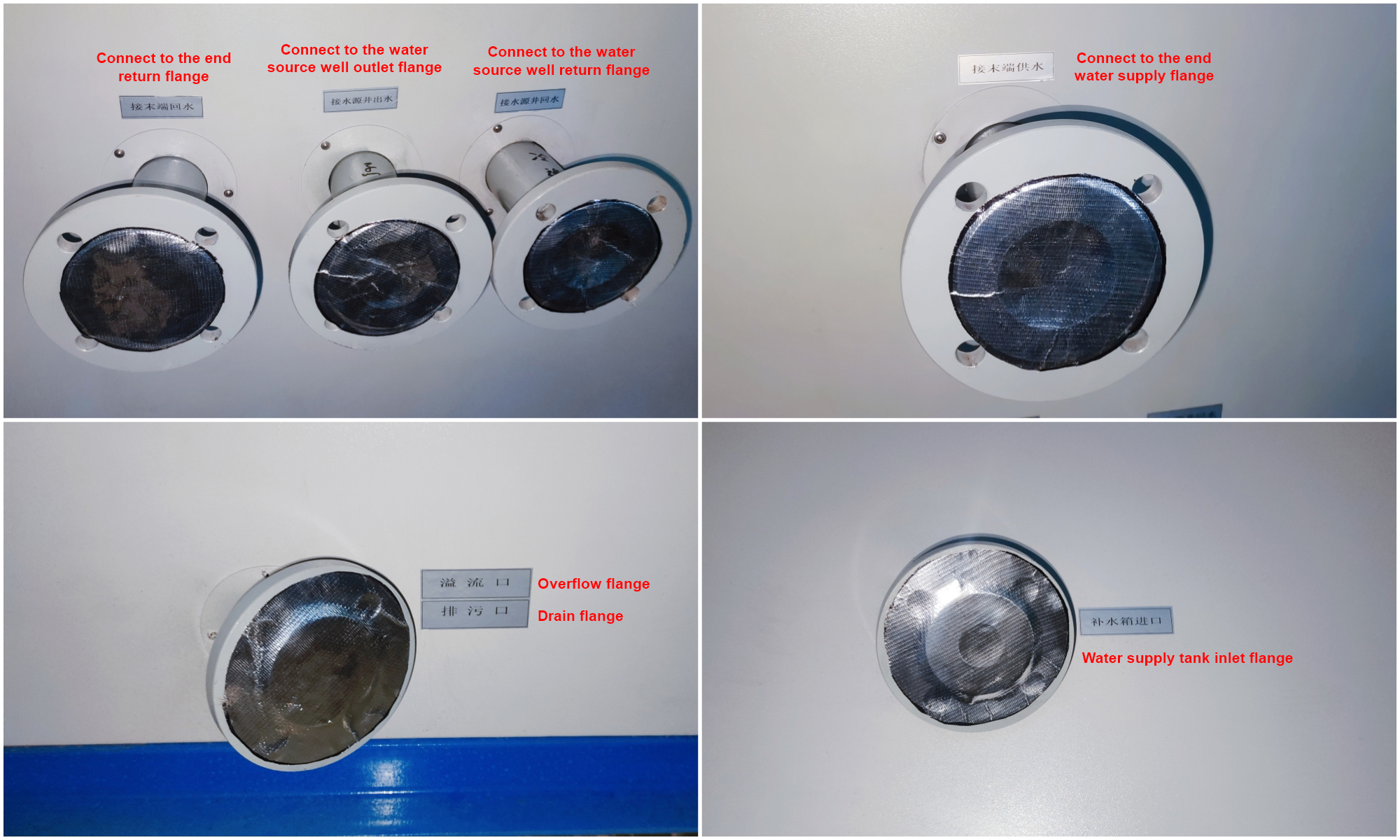

Figure 3-Outdoor flange interface picture

**Pre-wired switchgear and control devices**:

Using international brand universal switchgear, it is convenient to purchase spare parts and emergency parts. In addition, it can be customized according to customer needs. The unit provides comprehensive thermal protection and current protection starter to ensure safety.

Before leaving the factory, our electrical system will be fully wired and tested under strict quality control standards to ensure long-term stable operation even in harsh environments. Customers do not need to worry about on-site wiring or assembly of internal unit components.

In order to meet customers' specific control and logic requirements, our system supports open protocols, provides flexible interfaces and compatibility, ensures seamless connection with customers' existing systems, and realizes intelligent control.

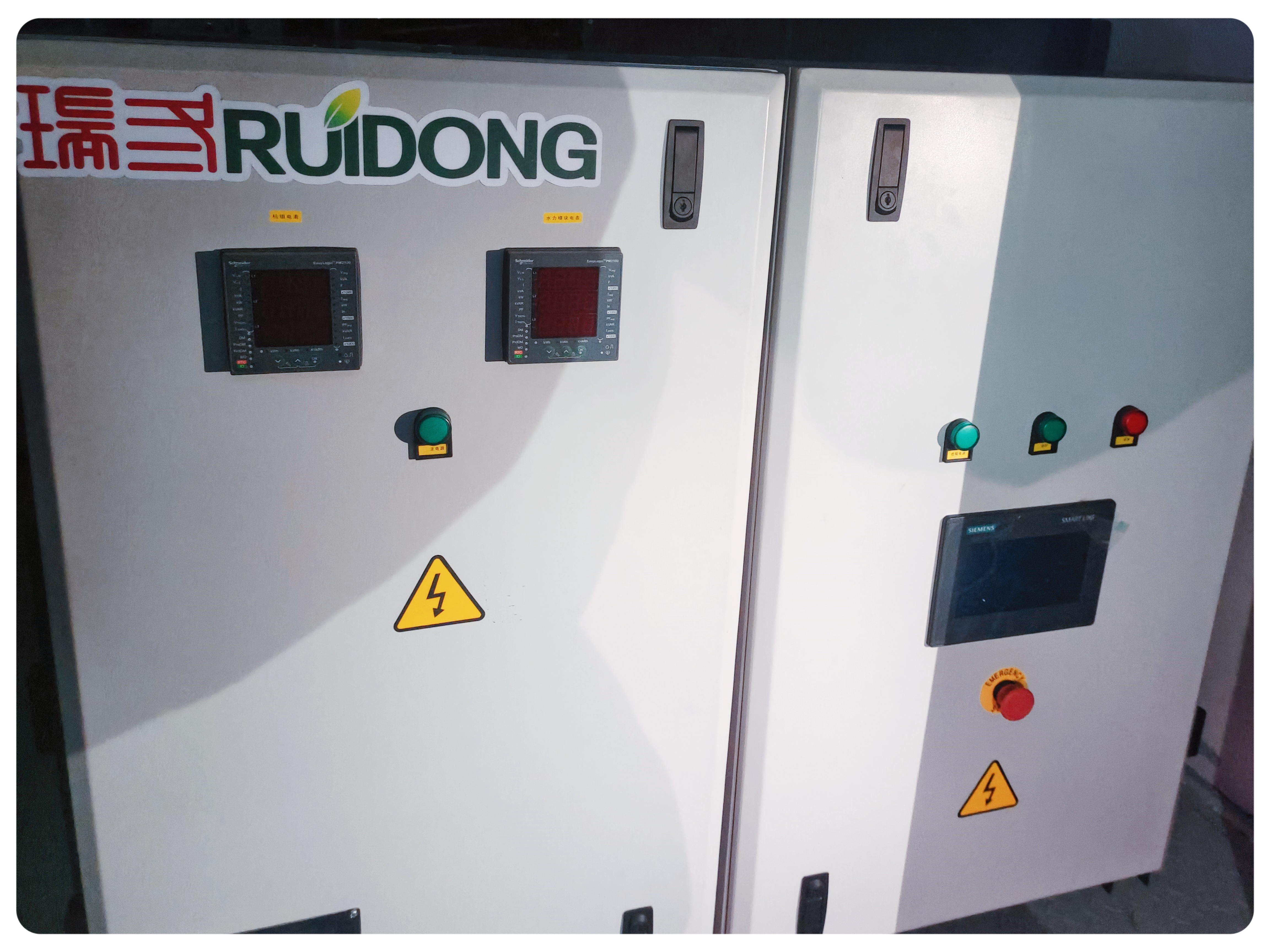

Figure 4- Electric control box panel

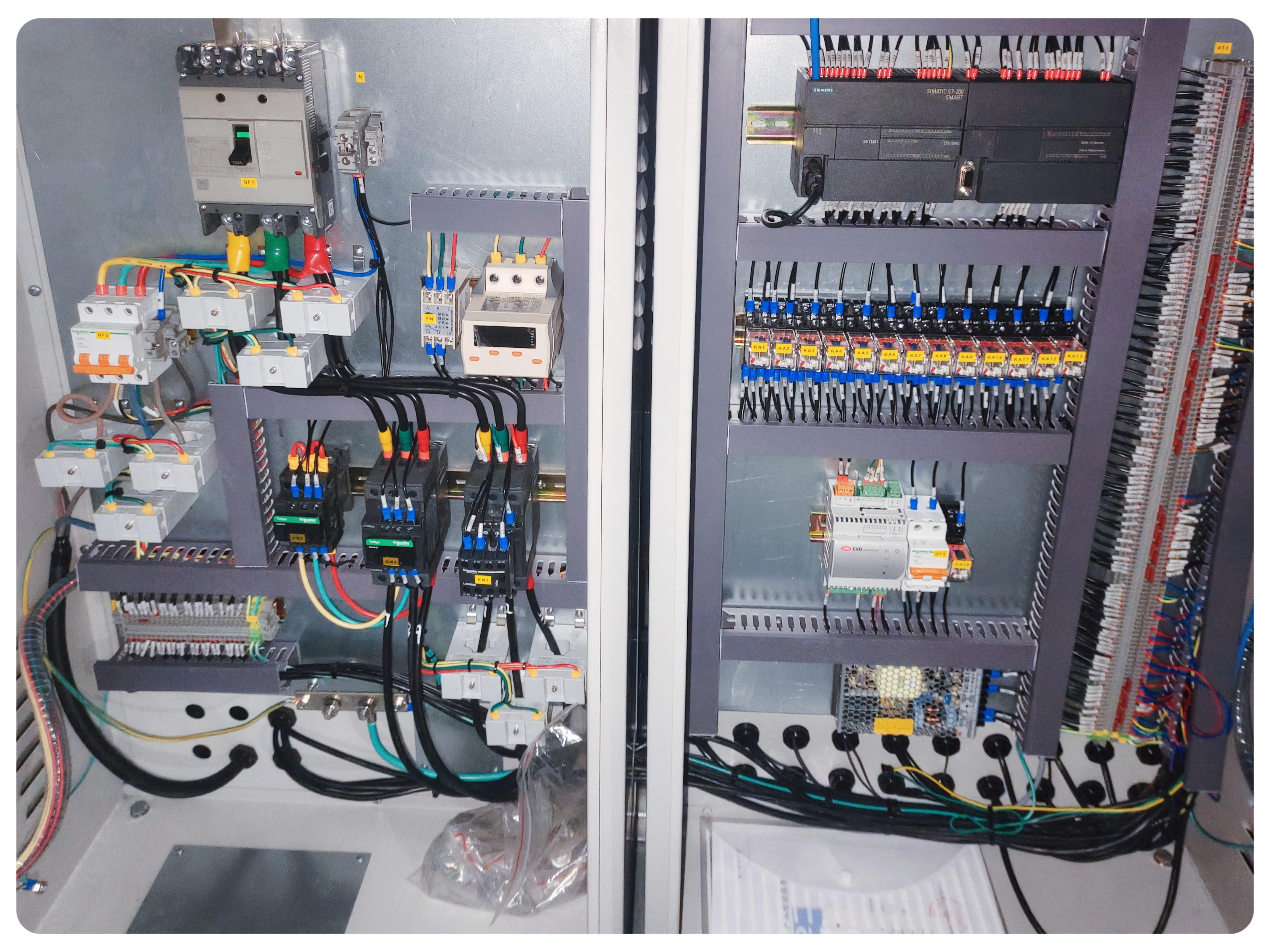

Figure 5- Inside the electric control box

**Summary of Packaged Chilling System Advantages**:

1. High-Efficiency Integrated Design:

The Packaged Cooling System integrates the cooling compressor, cooling water pump, chilled water pump, piping system, valves, instruments, and electrical controls into a single module, achieving a high level of professional integration, which greatly enhances installation efficiency and operational convenience.

2. Factory Manufacturing and Rapid Deployment:

The modular design of the packaged cooling system allows for complete production and assembly within the factory, significantly reducing on-site work. On-site tasks are limited to module positioning, fixing, and connecting interface pipes and electrical connections, simplifying the installation process and reducing the impact of adverse weather on construction.

3. International Brand Compressors and High-Efficiency Heat Exchangers:

The system uses internationally renowned brand compressors, paired with high-quality condensers and evaporators, ensuring the unit's high efficiency, stability, and low noise, extending its service life.

4. Intelligent PLC Central Control:

The industrial-grade PLC control system precisely matches the cooling capacity with the cold load, ensuring the unit operates at peak efficiency, effectively reducing energy consumption and operating costs.

5. Comprehensive Protection Features:

Multiple protection mechanisms are designed, including high-pressure protection, low-pressure protection, exhaust high-temperature protection, and current protection, ensuring the safe and stable operation of the unit.

6. Comprehensive Pre-Delivery Testing:

All key components are strictly tested before leaving the factory to ensure 100% qualification, reducing on-site commissioning time and enabling rapid deployment.

7. Integrated Large-Capacity Water Tank Design:

The Packaged Cooling System is equipped with a large-capacity water tank that can be directly connected to the water pipeline for use, simplifying the installation process.

8. Intuitive Operation Interface:

A visual operation interface with menu-style prompts allows users to easily set the unit's operating status as needed.

9. High Reusability Value:

The modular design provides high mobility to the packaged cooling system, enabling multiple relocations and reuse across different locations, increasing the return on investment.

10. Durable Polyurethane Insulation Panels:

The unit's overall panels are made of polyurethane insulation material, which is wear-resistant, corrosion-resistant, and waterproof, suitable for various harsh environments, and extends the service life of the unit.

11. Customized Services:

Customized services are offered based on different project requirements, with flexible combinations to meet various needs.

Our packaged cooling system can be applied to various environmental conditions. The overall panel shell of the unit can withstand wind and rain, water leakage and pests, etc., to ensure that the core components of the unit are not affected by the natural environment. The overall design of the unit can be placed directly outdoors to solve space and access problems, with a small footprint and convenient and practical.

Ruidong Group has been committed to providing customers with more efficient, environmentally friendly and reliable cooling solutions. Our Packaged Chilling System is not just a product, it represents our commitment to product innovation, product quality and customer service. If you want to learn more about our products or need technical support in the HVAC industry, you can contact us at any time.
