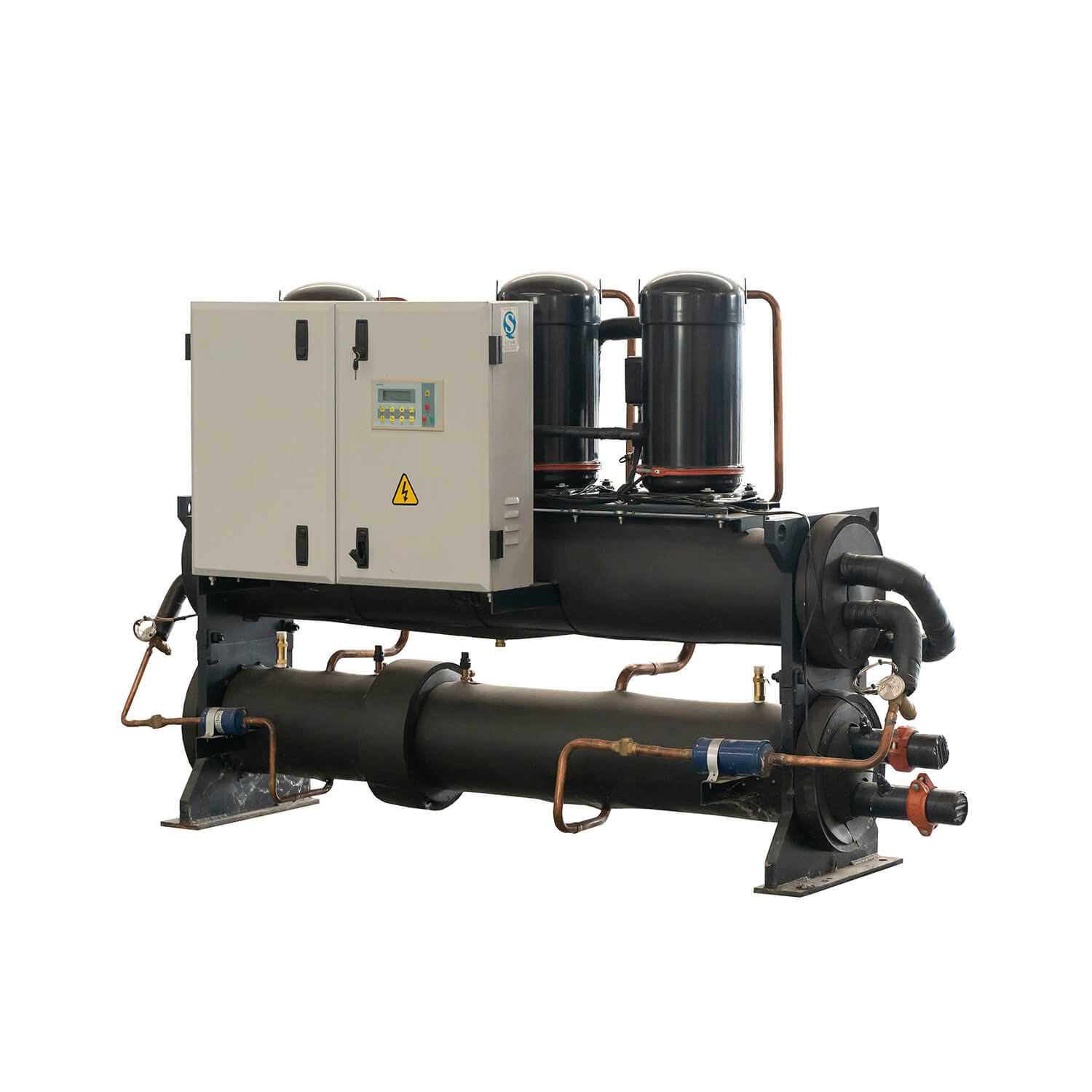

Professional Supplier Outlet 70kw-280kw Water Cooled Scroll Chiller

Share to:
Type:Water-cooled type
Categories:Scroll chiller
installation:Cooling tower working condition
Model:RLSW-(C)R
Brand:Ruidong
Place of origin:Dezhou, China
Power system:Three-phase & four-wire system (380V/220V-50HZ) & others
Configuration:Stationary
Warranty:1 year
Certification:CE CCC ISO9001 CRAA
Color:Customized
FOB port:Qingdao & Tianjing
Terms of Payment:L/C, T/T
  • Cooling tower working condition

Availability:
Quantity:

|

 Product Description

(1)Ruidong water-cooled scroll chillers are designed to operate efficiently in any space, whether it be indoors or outdoors. Unlike other chillers, they do not require a large and open area for stable and reliable operation. This makes them suitable for installation in various environments.

(2)One of the reasons behind the exceptional performance of Ruidong water-cooled scroll chillers is their rational design. They are equipped with internationally recognized components from renowned brands such as Danfoss and Copeland. These hermetic scroll compressors ensure efficient cooling and Schneider Electric components contribute to overall superior performance.

(3)Water-cooled scroll chillers are suitable for the following places:

  • Commercial buildings: such as office buildings, shopping malls, hotels, etc., for central air conditioning systems.

  • Industrial facilities: such as factories, food processing plants, pharmaceutical factories, etc., for refrigeration equipment.

  • Medical facilities: such as hospitals, laboratories, etc., for cooling equipment.

  • Educational institutions: such as schools, universities, etc., for large-scale air conditioning systems.

  • Entertainment venues: such as theaters, sports arenas, concert halls, etc., for air conditioning systems.

  • Residential communities: such as high-rise apartments, residential complexes, etc., for central air conditioning systems.

  • Electronic equipment rooms: such as computer rooms, communication base stations, etc., for cooling systems.

|

 Product installation - Cooling tower working condition

冷却塔工况


|


 Data Sheet

Cooling Tower working condition R407C
Model RLSW - (C) R 70 80 100 120 160 200 240
Power supply 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Compressor Qty 2 2 3 3 4 5 6
Normal cooling capacity kW 67 77 101.5 115.5 154 192.5 231
Input power of cooling kW 13.2 16 19.8 24 32 40 48
Max. running current A 37.6 44.4 56.4 66.6 88.8 111 133.2
Cable diameter
(Copper wire distnce≤20meters)
mm2 3*6+2*4 3*10+2*6 3*16+2*10 3*16+2*10 3*25+2*16 3*35+2*16 3*50+2*25
Compressor type Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll Hermetic scroll
Sarting mode Direct Direct Direct Direct Direct Direct Direct
Refrigerant R22/R407C R22/R407C R22/R407C R22/R407C R22/R407C R22/R407C R22/R407C
Refrigerant charge kg 13 13 20 20 26 32 40
Refrigerant control device Thermostatic expansion valve Thermostatic expansion valve Thermostatic expansion valve Thermostatic expansion valve Thermostatic expansion valve Thermostatic expansion valve Thermostatic expansion valve
Evaporator Type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type
Water pressure drop kPa 70 70 70 70 70 70 70
Water pipe Dia. DN 50 65 65 65 80 80 80
Connection Threaded connect Threaded connect Threaded connect Threaded connect Threaded connect Threaded connect Threaded connect
Well water flow m3/h 11.5 13.2 17.5 19.9  26.5 33.1 39.7
Condenser type Type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type Shell and tube type
Water pressure drop kPa 70 71 72 73 74 75 76
Water pipe Dia. DN 50 65 65 65 80 80 80
Water flow m3/h 14.4 16.6 21.8 24.8  33.1 41.4 49.7
Unit type

Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal
Dimensions L 1800 1800 2400 2400 2400 2800 3200
W 700 700 800 800 950 950 950
H 1350 1350 1400 1400 1450 1450 1450
Natwnigt kg 410 495 680 690 920 1080 1220
Running weigh kg 490 610 820 830 1050 1190 1480
Noise dB(A) 72 72 72 72 72 72 72
Main protection measures 1. High & Low voltage protection;   2. Anti-freeze protection;    3.Temperature control;
4. Reverse phase and phase loss protection
5.High & low pressure protection;    6.High pressure exhaust temperature protection;
7.Built-in motor overheating protection;
8.Over-current protection;    9. Safe valve;      10.Check valve
Remarks: Cooling conditions: User side inlet/outlet water temperature: 12℃/7℃;ground water inlet/outlet water temperature: 18℃/29℃;
User side inlet/outlet water temperature: 40℃/--℃;ground water inlet/outlet water temperature: 15℃/--℃;

As a professional water-cooled chiller supplier in China, RuiDong has exported many water cooled chiller machines to the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.

If you are looking for a high-quality open  type water cooled chiller  or scroll compressor water chiller manufacturer, please contact RuiDong sales for the best price quotation.




Q1: What is the size of the unit?

A1:  The minimum size of the unit is 1350mm*1800mm*700mm. However, our products support customization and can design appropriate size according to your needs. So you don't worry.


Q2: Could you help us to recommend the model for our project?

A2: Yes, we have engineer to check the details and make the scheme for you. Based on the following: Cooling capacity, Refrigerant, Ambient temperature, Voltage, For what industry, The building drawing and  Any other special requirements.


Q3: About our export ability?

A3:Ruidong products are exported to more than 50 countries and regions in the world, including Russia, Central Asia, Eastern Europe,Argentina, Southeast Asia, Indonesia, etc.The annual export value is $ 5 million.


Q4: Are you friendly for users with low purchases?

A4: We are professional air -conditioning manufacturers, support OEM, ODM, and ensure product quality. You can buy with confidence.


Q5: When will the order be shipped after payment?

A5: After the order is placed, it supports delivery within 7 working days. If the purchased products need to be customized, we need to communicate with the engineer before it can be determined.
