Air Cooled Screw Chiller and Heat Pump 280kW-1120kW

|

 Product Description

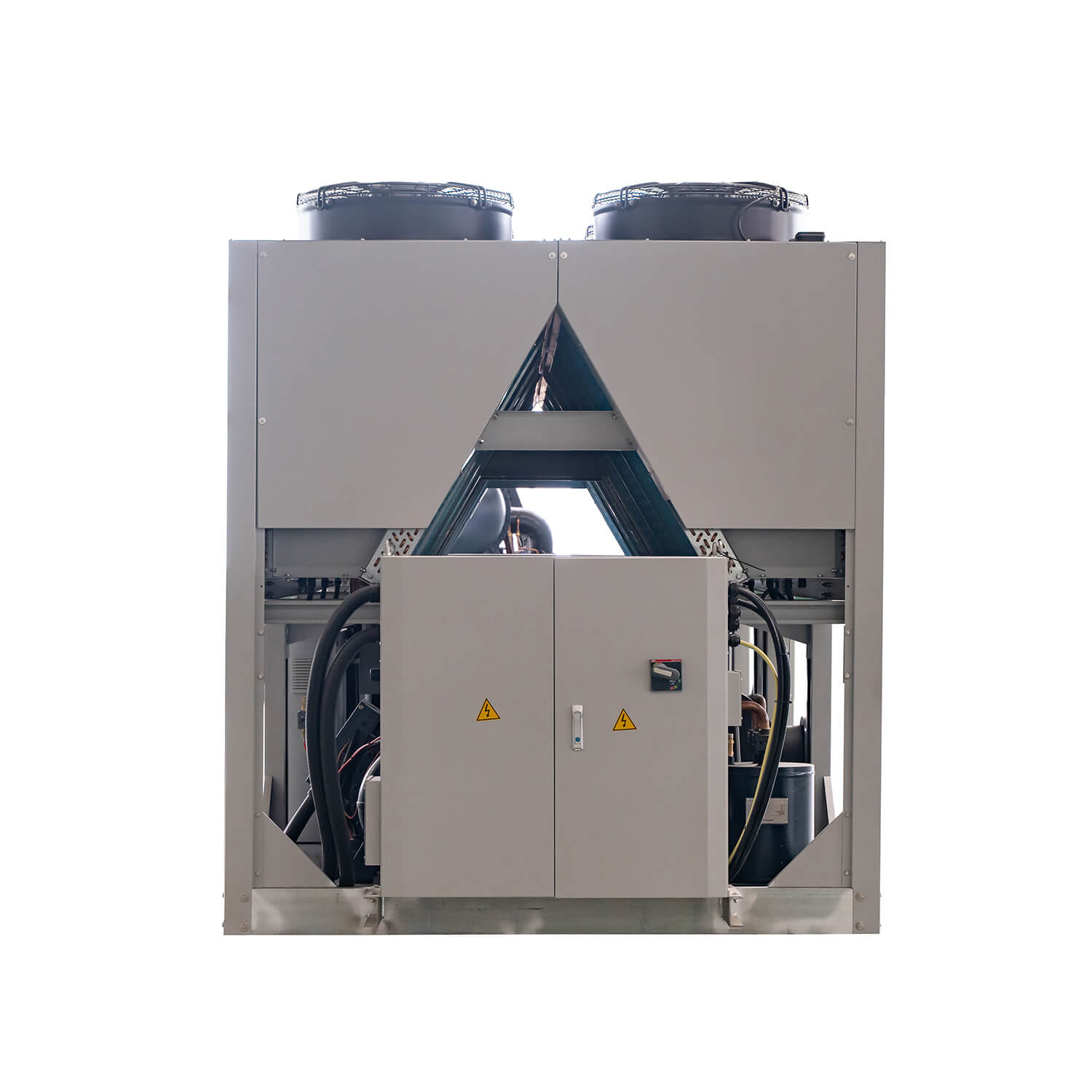

280-1120 kw Industrial Heavy Duty Horizontal Air Cooled Screw Chiller with Heat Pump

Air Cooled Screw Chiller is, in fact, a cooling system that uses air to cool the temperature of the application unit. It doesn’t involve the complications of installing an immense water-cooling system but stays easy to install. Despite having a compact structure, it is lightweight that operates quietly without producing noises.

Ruidong Group Co., Ltd  is mainly engaged in the design, production, sales and installation of central air conditioners, and has been engaged in the industry for 15 years. Ruidong is the leading manufacturer and supplier of China servicing the whole world industries with energy efficient and steadfast Air Cooled Screw Chiller with a worldwide reputation.

Air Cooled Screw Chiller can withstand harsh climatic conditions thus, widely used in various industrial plants to maintain the temperature.

The Air Cooled Screw Chiller produced by Ruidong is comprised of essential components for efficient operation. These components include a screw compressor, an air-cooled condenser, an ice thermal storage unit, a condenser fan, an AC control system, a refrigerant tank, expansion valves, a tube type evaporator, and protection devices.

• Screw compressor is responsible for compressing the refrigerant gas, increasing its temperature and pressure before it enters the condenser.

• Air-cooled condenser transfers heat from the refrigerant to the surrounding air, causing it to condense and return to a liquid state.

• Condenser fan aids in the dissipation of heat from the condenser. It blows air over the condenser coils, improving the heat transfer process and ensuring efficient cooling operation.

• AC control system oversees and regulates the chiller's operation. It controls various parameters such as refrigerant flow, compressor speed, condenser fan speed, and water flow to optimize performance.

• Refrigerant tank is used to store the refrigerant employed in the chiller system. It maintains the appropriate refrigerant charge and provides a buffer for any changes in system conditions.

• Expansion valves regulate the flow of refrigerant from the high-pressure side to the low-pressure side of the chiller. They manage the refrigerant flow rate, ensuring proper cooling performance.

• Shell and tube type evaporator absorbs heat from the chilled water, effectively cooling it down. It consists of a network of copper tubes through which the refrigerant flows, facilitating heat transfer from the water to the refrigerant.

• Protection devices are in place to ensure the safe and efficient operation of the chiller. These devices include high-pressure and low-pressure switches, flow switches, temperature sensors, and safety controls. They protect the chiller from abnormal operating conditions and prevent any damage to the system.

|

 Product Details

|

 Data Sheet
