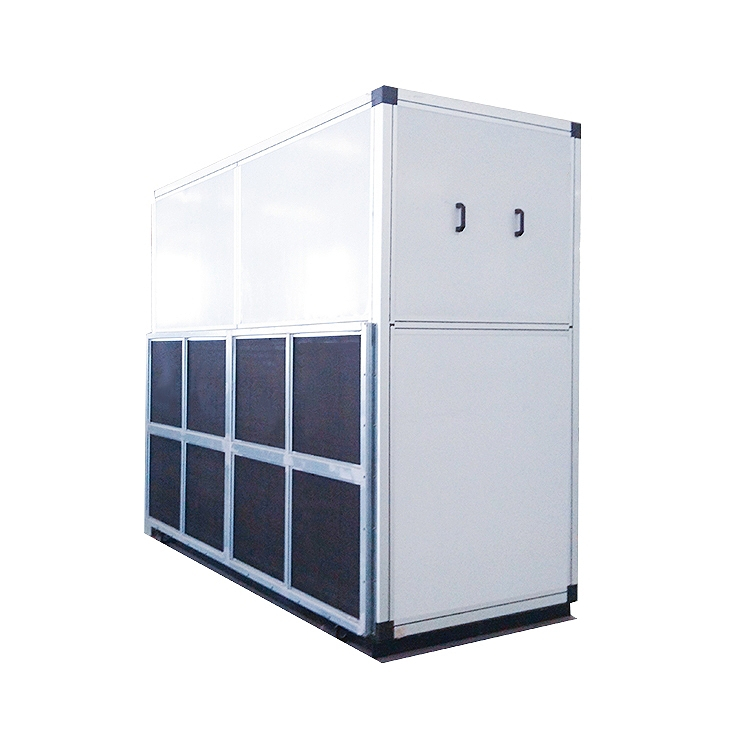

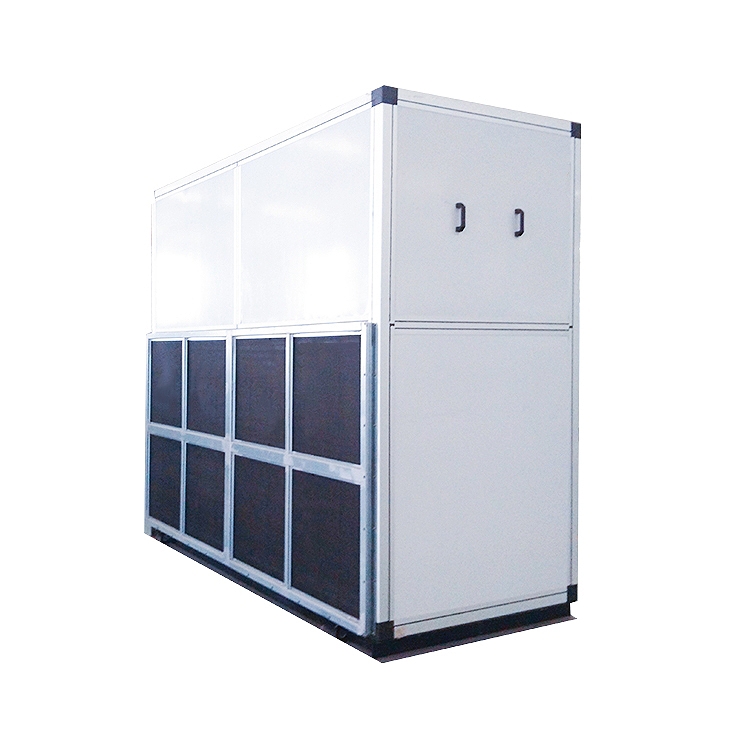

High-Efficiency Vertical Air Handling Unit for Commercial and Industrial Applications
The classification and advantages of air handling units are summarized as follows:
### Classification:
1. **Ceiling air handling unit**: Suitable for occasions that require hidden installation.
2. **Jet air handling unit**: Suitable for tall and large spaces, and can deliver air over long distances without air ducts.
3. **Horizontal air handling unit**: Suitable for places with limited space and horizontal installation.
4. **Vertical air handling unit**: Suitable for vertical installation in space, saving floor space.
### Advantages:
1. Easy to clean the filter: Standard nylon filter, which can be easily pulled out for cleaning, and optional primary plate filter for easy maintenance.
2. Function integration: Integrated cooling, heating, humidification, dehumidification, air purification and other functions to meet the air quality requirements of different places.
3. Number of rows of air handling units: Provides multiple configurations such as 4 rows of pipes, 6 rows of pipes, and 8 rows of pipes to meet different cooling capacity requirements.
4. Flexible working conditions: Supports return air working conditions and fresh air working conditions to adapt to different air treatment needs.
5. High-efficiency surface cooler: Adopts high-quality copper tubes and hydrophilic aluminum foil, and the mechanical expansion tube process ensures tight integration, improves the heat exchange effect, and passes the 2.0MPa airtightness test to ensure no penetration.
6. Hydrophilic aluminum foil design: Thickness 0.12mm, no water on the surface, which is conducive to heat exchange and corrosion prevention.
7. Double air inlet centrifugal fan: After dynamic and static balance test, it runs smoothly and has low noise.
8. International brand fan bearing: Improve the reliability and durability of the fan.
9. No cold bridge aluminum alloy structure: With special cast aluminum accessories for plug-in, it has high strength, light weight, corrosion resistance, high precision and long service life.
10. Double-layer color steel panel: Filled with high-density polyurethane foam insulation material, it has high insulation performance and high strength.
11. Self-tightening function lock technology: high air tightness of the inspection surface, low air leakage rate, easy to disassemble and assemble.
12. High-efficiency fan system and air flow channel design: ensure that the air is fully mixed and filtered inside the unit, and the output air is clean and comfortable.
These advantages enable the air handling unit to meet the needs of different places for indoor air environment temperature and humidity treatment, provide human comfort, and be suitable for use in various places.
