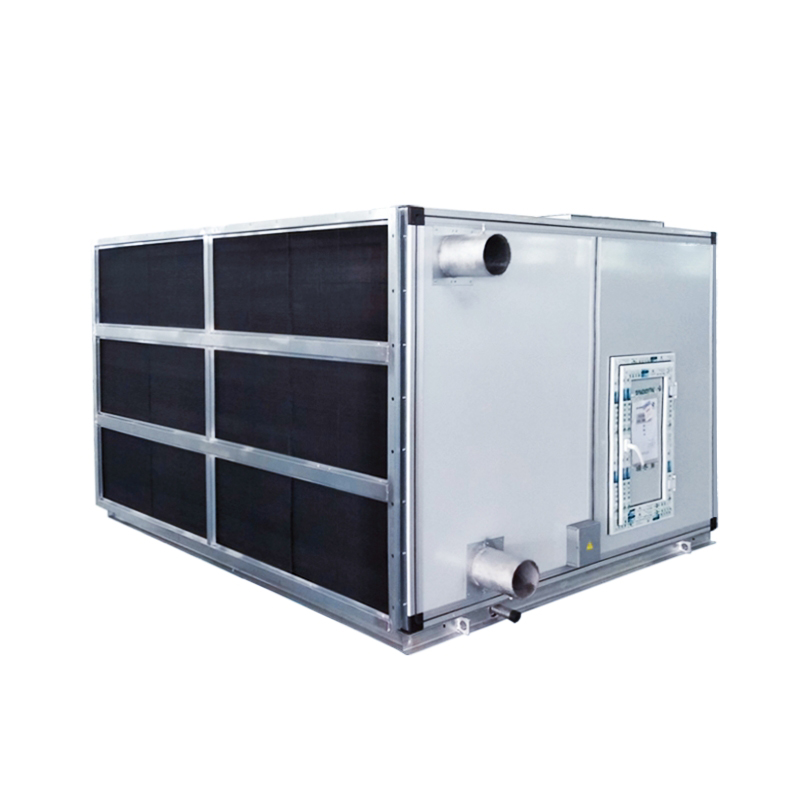

The Ruidong customizable horizontal air handling unit is a high-efficiency central air conditioning system suitable for a wide range of settings, including office buildings, hotels, shopping malls, hospitals, and schools, providing comfortable indoor air treatment solutions. The unit supports various coil configurations, including 4-row, 6-row, and 8-row arrangements, and can be flexibly configured with chilled water coils or refrigerant coils to meet different heating and cooling load requirements.
The units offer a wide range of airflow capacities, from 2,000 to 65,000 m³/h.
Featuring a double-layer color-coated steel plate structure with high-density polyurethane foam insulation, the units have passed a 2.0 MPa pressure test and exhibit excellent thermal insulation and flame-retardant properties.
Ruidong products are certified under the National Refrigeration Equipment Manufacturing License
and undergo rigorous testing before shipment, ensuring reliable performance.
Ruidong horizontal air handling units are designed with the goals of “customizability, high energy efficiency, and quiet, comfortable operation.” The units come equipped with built-in mesh or bag filters, with optional pre-filters or higher-efficiency filters available. These filters are easy to remove and clean, ensuring clean indoor air.
The units integrate cooling, heating, humidification, dehumidification, and purification functions, adapting to both fresh air and return air conditions to meet diverse HVAC requirements. Equipped with dual-inlet centrifugal fans, the fans undergo dynamic balancing tests to ensure smooth operation and low noise levels; fan bearings use international brands to enhance reliability and service life. The cabinet structure features an aluminum alloy thermal bridge-free frame and double-layer color-coated steel sandwich panels filled with eco-friendly polyurethane foam (optional 25mm/50mm panels, Class B1 flame retardant), providing excellent thermal insulation and corrosion resistance.
The control system offers a choice between PLC or intelligent control modules, enabling coordinated management of air dampers, water valves, and fan motors. It utilizes internationally renowned low-voltage electrical components, ensuring system reliability and ease of maintenance.
The unit features a compact, modular design, supporting customization in size, functionality, and finish, and can be flexibly installed on the floor of a mechanical room or suspended from the ceiling.
Wide airflow range (2,000–65,000 m³/h) to accommodate large-area spaces
Optional 4/6/8-row high-efficiency heat exchange coils
Standard mesh filters are serviceable and support upgrades to high-efficiency filters; dual-inlet centrifugal fans operate with low noise
Polyurethane insulated panels provide excellent thermal insulation and meet Class B1 fire resistance standards
Full support for return air and fresh air modes, with integrated air handling functions. All components are made from high-quality materials and components to ensure durability and energy efficiency.
Wide Airflow Range:
Supports airflow rates from 2,000 to 65,000 m³/h
Multi-Row Coils:
Choice of chilled water or refrigerant coils, available in 4-row, 6-row, or 8-row configurations
High-Efficiency Heat Exchange:
Features high-quality copper tubes paired with 0.12 mm hydrophobic aluminum fins, tightly packed for high efficiency, and passes a 2.0 MPa seal leakage test
Low-Noise Fans:
Dual-inlet centrifugal fans, dynamically and statically balanced for stable, smooth operation and low noise
Robust and Durable Housing:
Aluminum alloy thermal bridge-free frame + double-layer color-coated steel panels + high-density polyurethane insulation for corrosion resistance and thermal insulation
Flexible Filtration Options:
Standard nylon mesh filtration; optional multi-stage panel or bag filters to meet various cleanliness requirements
Intelligent Control:
Integrated control solution for fans and water valves, utilizing international-brand low-voltage electrical components and thermostats, with support for PLC/BMS integration
Energy-Efficient:
Coil bank configuration can be customized to meet varying heating and cooling loads, ensuring more energy-efficient operation
Quality Certification:
Holds a National Refrigeration Equipment Manufacturing License and undergoes rigorous factory inspections to ensure product reliability
Customization Options:
Supports OEM branding and dimensional customization; airflow, functional modules, and finish materials can be flexibly configured to meet on-site requirements
Ruidong horizontal air handling units are widely used in commercial buildings, hotels, hospitals, schools, shopping malls, and other venues. They can be installed horizontally in indoor equipment rooms or beneath ceilings for fresh air handling, return air handling, and terminal air distribution in central air conditioning systems, providing a comfortable temperature and humidity environment.
