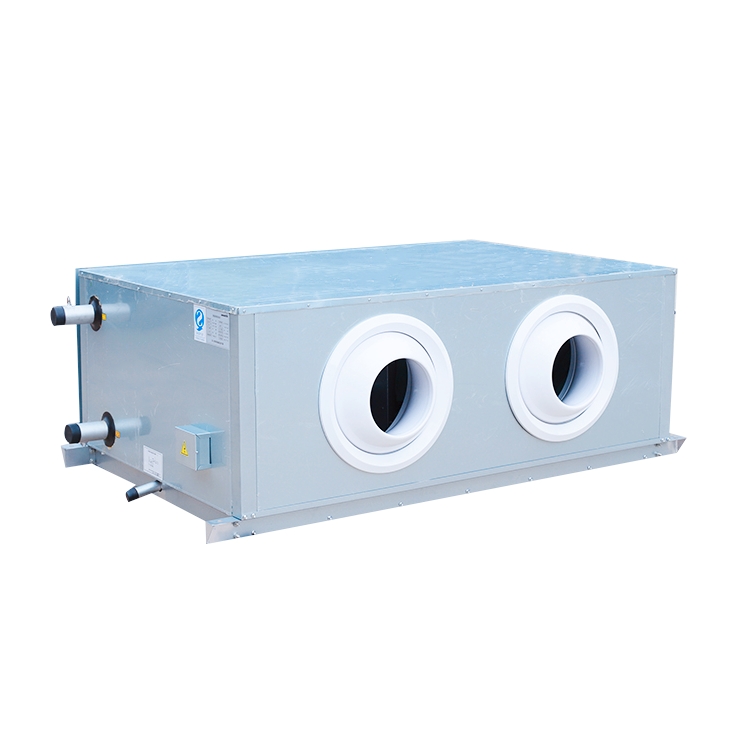

The Ruidong High-Performance Jet Ceiling Air Handling Unit is a ductless air handling solution specifically designed for large commercial spaces (such as supermarkets and shopping malls) and industrial facilities. Below are the unit’s ten key advantages:
Extended Jet Air Distribution Up to 60 Meters:
Featuring a spherical nozzle design, the unit delivers treated air up to 60 meters without the need for ductwork, addressing the long-standing issues of air distribution dead zones and airflow blind spots in high-ceilinged spaces that plague traditional HVAC systems.
High-Efficiency, Energy-Saving Operation:
The ductless design eliminates pressure drop and air leakage along the path, reducing fan energy consumption and heat/cooling loss, thereby significantly lowering operating costs.
Low-Noise, Comfortable Experience:
Equipped with low-noise fans and motors, combined with sound-insulating materials, this system is ideal for environments with strict noise requirements, such as shopping malls and office lobbies.
Flexible Functional Configuration:
Supports on-demand integration of cooling, heating, humidification (including various methods such as electrode humidification, dry steam humidification, and electric heating humidification), and air purification functions. Optional hot water coils and electronic control components are available to accommodate different regional heating methods and diverse process requirements.
Compact Ceiling-Mounted Design:
The unit is lightweight and compact, optimized for ceiling installation, freeing up valuable floor or wall space.
Robust and Durable Enclosure Design:
Features a high-strength frame structure with fully broken thermal bridges and high airtightness, effectively preventing heat loss, eliminating condensation, and blocking the infiltration of contaminated air.
Versatile Airflow Configurations:
Offers single-panel and double-panel options, along with various supply and return air combinations (such as top supply and side return), and supports fresh air intake to improve indoor air quality.
Convenient Maintenance:
Designed for ease of maintenance, allowing for quick removal and replacement of filters.
Superior durability and corrosion resistance:
The unit’s structure offers excellent mechanical strength and a multi-seal design, combined with outstanding thermal insulation and noise reduction capabilities, making it suitable for harsh industrial environments.
Optimized airflow distribution:
Utilizing the aerodynamic effect of jet induction, high-speed jets generated by spherical nozzles effectively drive surrounding airflow, ensuring uniform indoor air mixing and eliminating dead zones.
Q1: In what types of settings are jet ceiling units suitable?
A: They are suitable for large, high-ceilinged spaces such as supermarkets, factory workshops, gymnasiums, swimming pools, airport terminals, and exhibition halls, as well as locations where installing traditional ductwork is impossible or impractical.
Q2: What is the maximum distance for ductless air distribution?
A: Using spherical nozzle jet technology, the maximum airflow distance can reach 60 meters, covering large-span areas without the need for ductwork.
Q3: When heating, will the warm air get trapped near the ceiling and fail to reach the floor?
A: No. The spherical nozzle can be adjusted to direct airflow vertically downward, and the jet force is sufficient to overcome the natural rise of warm air, ensuring effective heating at floor level as well.
Q4: What functional configurations does the unit support?
A: It supports cooling, heat pump/electric heating/hot water heating, humidification (electrode, dry steam, etc.), air purification, and fresh air intake, allowing for flexible customization.
Q5: Is installation and maintenance convenient?
A: Yes. The unit features a compact ceiling-mounted design that requires only suspension rods for installation; components such as filters can be quickly removed for cleaning.
Q6: What are the advantages over traditional duct systems?
A: It saves ceiling space, reduces material and installation costs, lowers fan energy consumption, and eliminates heat loss due to duct leaks.
Q7: How does a spherical diffuser differ from a standard diffuser?
A: A spherical diffuser delivers high airflow velocity and long throw, making it suitable for centralized air distribution in large spaces; standard diffusers have a short throw and require multi-point installation.
Q8: Is the unit noisy?
A: It uses a low-noise fan motor combined with sound-insulating materials, meeting the strict noise requirements of environments such as shopping malls and office lobbies.
