Heat exchangers are essential devices in various industries, ranging from HVAC systems to chemical processing, refrigeration, and power generation. Their primary function is to transfer heat between two or more fluids without mixing them. Understanding the principle behind heat exchangers is crucial for selecting the right type for your application and ensuring optimal performance. This article will explore the core principles of how heat exchangers work, their design, and how they contribute to energy efficiency and system performance.

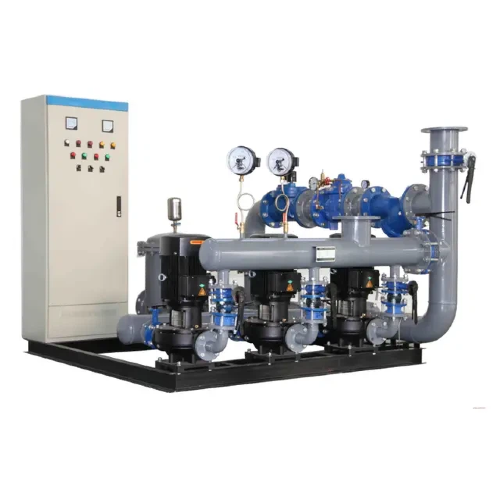

A heat exchanger is a mechanical device designed to transfer heat between two or more fluids at different temperatures. It operates on the principle of thermal conduction, where heat is transferred from a hotter fluid to a cooler one, without the two fluids mixing. Heat exchangers are crucial in numerous applications where heat transfer between different mediums is necessary for the proper functioning of the system.
Heat exchangers come in various designs, each suited for specific applications. Below are the most common types of heat exchangers:
Plate Heat Exchanger: Consists of multiple plates stacked together with small gaps between them, forming channels for fluid flow. It is highly efficient in transferring heat and is commonly used in compact applications.

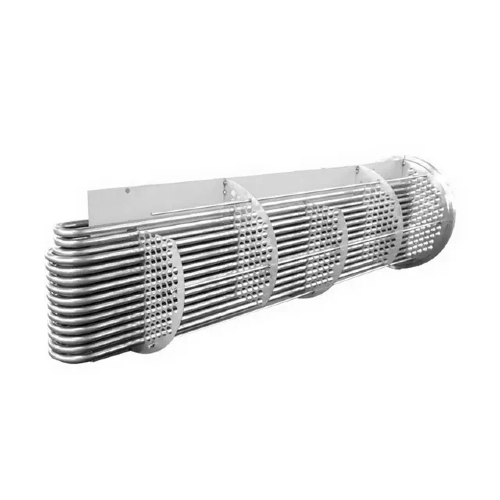

Shell and Tube Heat Exchanger: Made up of a series of tubes housed within a shell. One fluid flows through the tubes while another flows around the tubes, making it ideal for high-pressure applications.
Air-Cooled Heat Exchanger: Uses air instead of water to cool the fluid, suitable for areas with limited water supply or outdoor applications.
Double Pipe Heat Exchanger: Consists of one pipe inside another, where the two fluids flow in opposite directions for heat exchange. This design is typically used for small-scale applications.
To understand how a heat exchanger works, it's essential to grasp the underlying principles of heat transfer. The core principle of heat exchangers relies on thermal transfer, which occurs via three primary mechanisms: conduction, convection, and radiation.
Conduction is the process by which heat is transferred through a solid material from a hotter area to a cooler area. This occurs at the molecular level as the particles in the hot region vibrate and pass their energy to adjacent cooler particles. In heat exchangers, conduction is facilitated by the material (usually metal) through which heat is transferred between two fluids.
Convection occurs when heat is transferred through a fluid (liquid or gas) due to the fluid's movement. When a fluid is heated, its density decreases, causing it to rise and be replaced by cooler fluid. This movement allows heat to be carried from one location to another. In a heat exchanger, convection is crucial for moving heat from the heated surface (tube, plate) into the fluid.
Radiation is the transfer of heat through electromagnetic waves, such as infrared radiation. While radiation plays a minor role in heat exchangers, it is still a factor in some specialized designs, especially where fluids are heated to high temperatures.
In heat exchangers, conduction and convection are the primary mechanisms of heat transfer. The heat is first conducted through the walls of the heat exchanger (whether it’s a plate, tube, or shell), and then convection ensures that heat is transferred from the solid surface to the fluid, where it is carried away. By designing the heat exchanger with appropriate surface area and materials, heat transfer can be maximized.
The efficiency of heat transfer in a heat exchanger is directly related to the surface area available for heat exchange. The larger the surface area, the more heat can be transferred between the two fluids. This is why designs such as plate heat exchangers are used, as their large surface area allows for effective heat transfer in a compact space.
The design of a heat exchanger plays a significant role in how efficiently it can transfer heat. Below, we break down the essential components and design features that optimize heat transfer.
Heat Transfer Surfaces: These are the surfaces where heat is transferred between fluids. In a plate heat exchanger, the plates serve as the primary heat transfer surfaces, while in a shell and tube design, the tubes perform this function.
Fluids: Heat exchangers operate by transferring heat between two different fluids, which can be liquids or gases. The fluids are typically separated by the heat transfer surfaces to prevent mixing.
Flow Arrangement: The arrangement in which the fluids flow through the heat exchanger is critical for optimizing heat transfer. Common flow arrangements include counterflow, parallel flow, and crossflow.
The flow arrangement of fluids in a heat exchanger determines its efficiency. Below are the three primary types of flow configurations:
Counterflow: The two fluids flow in opposite directions, which maximizes the temperature difference and allows for more efficient heat transfer. This is the most efficient flow arrangement in terms of heat transfer performance.
Parallel Flow: The fluids flow in the same direction, which results in a smaller temperature difference between the fluids as they move through the heat exchanger. This arrangement is less efficient than counterflow but is sometimes used in specific applications.
Crossflow: One fluid flows perpendicular to the other fluid. This arrangement is commonly used in air-cooled heat exchangers.
Flow Type | Description | Efficiency |
Counterflow | Fluids flow in opposite directions. | Most efficient. |
Parallel Flow | Fluids flow in the same direction. | Less efficient. |
Crossflow | One fluid flows perpendicular to the other. | Moderately efficient. |
Several factors influence the efficiency of a heat exchanger, impacting how well it performs in transferring heat. Understanding these factors can help in optimizing heat exchanger performance.
The surface area directly affects the heat transfer rate. The larger the surface area, the more heat can be transferred between the fluids. This is why many heat exchangers are designed to increase surface area through the use of plates, fins, or tubes.
The greater the difference in temperature between the two fluids, the more heat can be transferred. This principle is based on the second law of thermodynamics, where heat always flows from the hotter object to the cooler one.
The flow rate of the fluids plays a critical role in heat transfer efficiency. Higher flow rates increase the heat exchange rate but may also cause pressure drops. It's important to balance flow rate to avoid excessive energy consumption.
The material of the heat exchanger’s surface significantly affects heat transfer. Materials with high thermal conductivity, such as copper or aluminum, are preferred because they allow heat to pass through more efficiently.
Heat exchangers are used in many industries, each application benefiting from their ability to efficiently manage heat transfer. Below are some of the primary industries that rely on heat exchangers.
In HVAC systems, heat exchangers are used to transfer heat between air and water or refrigerants. They play an essential role in heating and cooling buildings, contributing to energy efficiency and ensuring optimal indoor air quality.
In power plants, heat exchangers transfer heat from steam or exhaust gases to other fluids to generate electricity. They are crucial in maintaining system efficiency and reducing energy losses.
Heat exchangers are integral to refrigeration and air conditioning systems, where they help absorb heat from indoor air and release it outside, keeping spaces cool and comfortable.
Chemical processing industries rely on heat exchangers to maintain optimal temperatures during reactions. They ensure that chemicals are heated or cooled efficiently, maintaining the integrity of products and enhancing process safety.
Proper maintenance is crucial for ensuring the longevity and efficiency of heat exchangers. Neglecting maintenance can lead to decreased performance, higher energy costs, and potential equipment failure.
Fouling: The buildup of debris or sediments on heat transfer surfaces can reduce efficiency.
Corrosion: Corrosion can occur when the heat exchanger material reacts with fluids, leading to leaks and damage.
Clogging: Blockages in the tubes or plates can obstruct fluid flow, diminishing heat transfer effectiveness.
Regular cleaning and inspection of heat exchangers help avoid fouling and clogging.
Checking for leaks and signs of corrosion is important for ensuring the integrity of the system.
Replacing worn-out parts or components can prevent further damage and maintain efficiency.
Understanding the principles behind heat exchangers is crucial for selecting the right equipment and ensuring optimal performance. At Ruidong Group, we specialize in providing high-quality heat exchangers designed to work efficiently based on the principles of conduction and convection. These devices transfer heat effectively between fluids, and their design, efficiency, and overall performance depend on factors such as surface area, flow rate, and material conductivity. We emphasize the importance of regular maintenance to prevent issues like fouling, corrosion, and clogging, which can otherwise compromise efficiency and system reliability. Whether you're looking to enhance your system's performance or ensure long-term functionality, our team is here to offer expert advice and tailor solutions to meet your specific needs. Reach out to us today to learn how we can help you choose and maintain the ideal heat exchanger for your application.
A heat exchanger transfers heat from one fluid to another through conduction and convection. The heat moves from the hotter fluid to the cooler fluid without the two fluids mixing.
Common types of heat exchangers include plate heat exchangers, shell and tube heat exchangers, air-cooled heat exchangers, and double-pipe heat exchangers.
Efficiency can be improved by optimizing the temperature difference between fluids, increasing the surface area, adjusting flow rates, and selecting materials with high thermal conductivity.
Heat exchangers should be inspected regularly, at least once a year, to prevent fouling, corrosion, and clogging, and to ensure they are functioning efficiently.
Heat exchanger failure can be caused by issues like corrosion, clogging, fouling, and physical damage such as cracks or leaks.
