​Air Cooled Screw Chillers Efficient For Industrial Applications

|

 Product Description

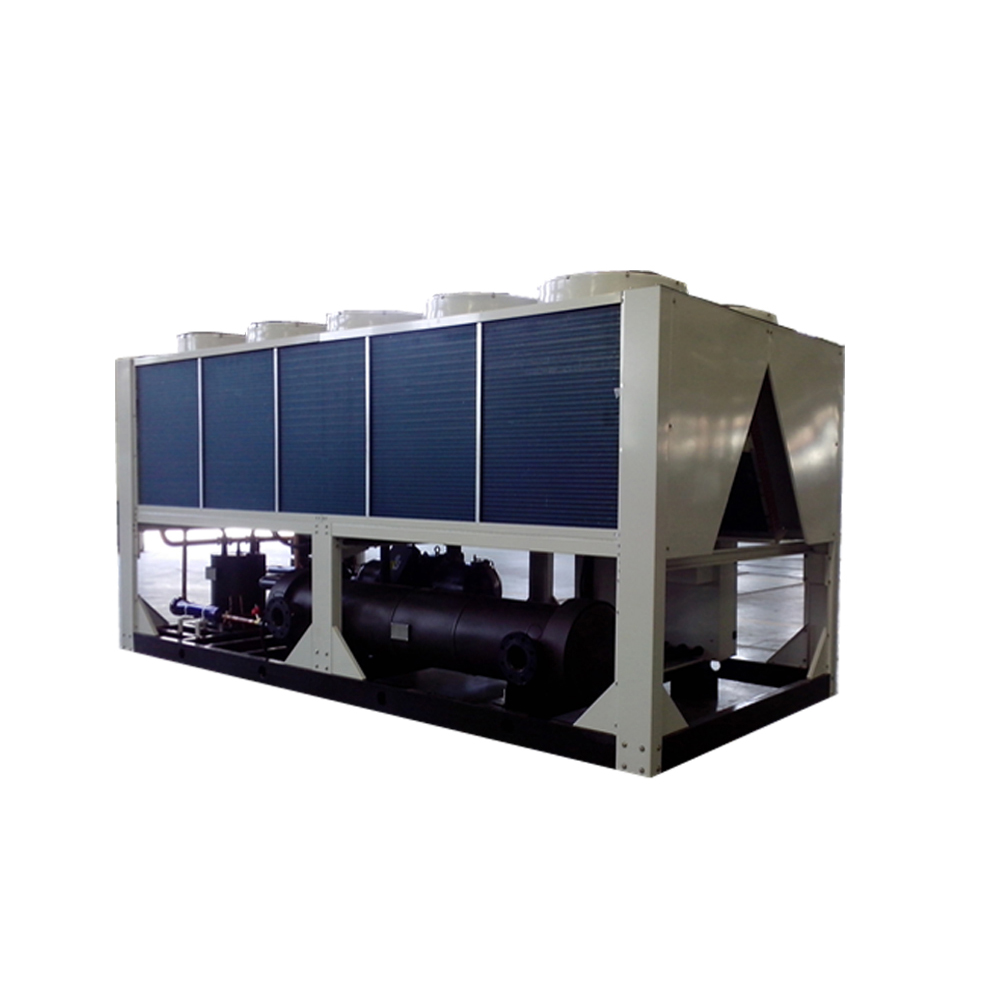

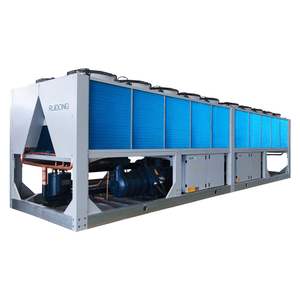

Ruidong Air-Cooled Screw Chiller

Available in:

Cooling only, heat pump

Nominal Capacity Range (cooling): kW

280,320, 360, 460, 500, 560 Modules

Refrigerant:

R22/R134a/R407c

Precise temperature control

Air-Cooled Screw Chillers with Precise Outlet Water Temperature Control, thanks to the innovative combination of Continuous Capacity Control Compressor and electronic controls.

Screw compressor

Ruidong's Air Cooled Screw Chiller Units feature an upgraded twin screw compressor and advanced technology equipped with the Infinity Capacity Control from 25% to 100%. This innovative modulation ensures that the compressor load precisely matches the desired load, resulting in precise chilled water temperature control without the need for costly inverter devices.

Modular design

Ruidong's Air Cooled Screw Chiller Units have a modular design, offering scalability, customization, cost savings, and operational efficiency. Customers have the ability to tailor the chiller system to their exact requirements, ensuring optimal performance while minimizing unnecessary capacity that may go unused. This design simplifies installation, maintenance, and future expansions for a wide range of applications.

Finned condenser

Air cooling finned condenser is made with an inner grooved copper tube and hydrophilic aluminum fins, tightly bound together for optimal heat exchange.

Shell and tube evaporator features pressure vessels made from high-quality steel plate. The evaporator baffle plate is made of PVC engineering plastic for corrosion resistance and improved heat exchange capacity. The exterior surface has flame-retardant water-proof heat-insulation and preservation materials.

|

 Product Details

|

 Testing Quality

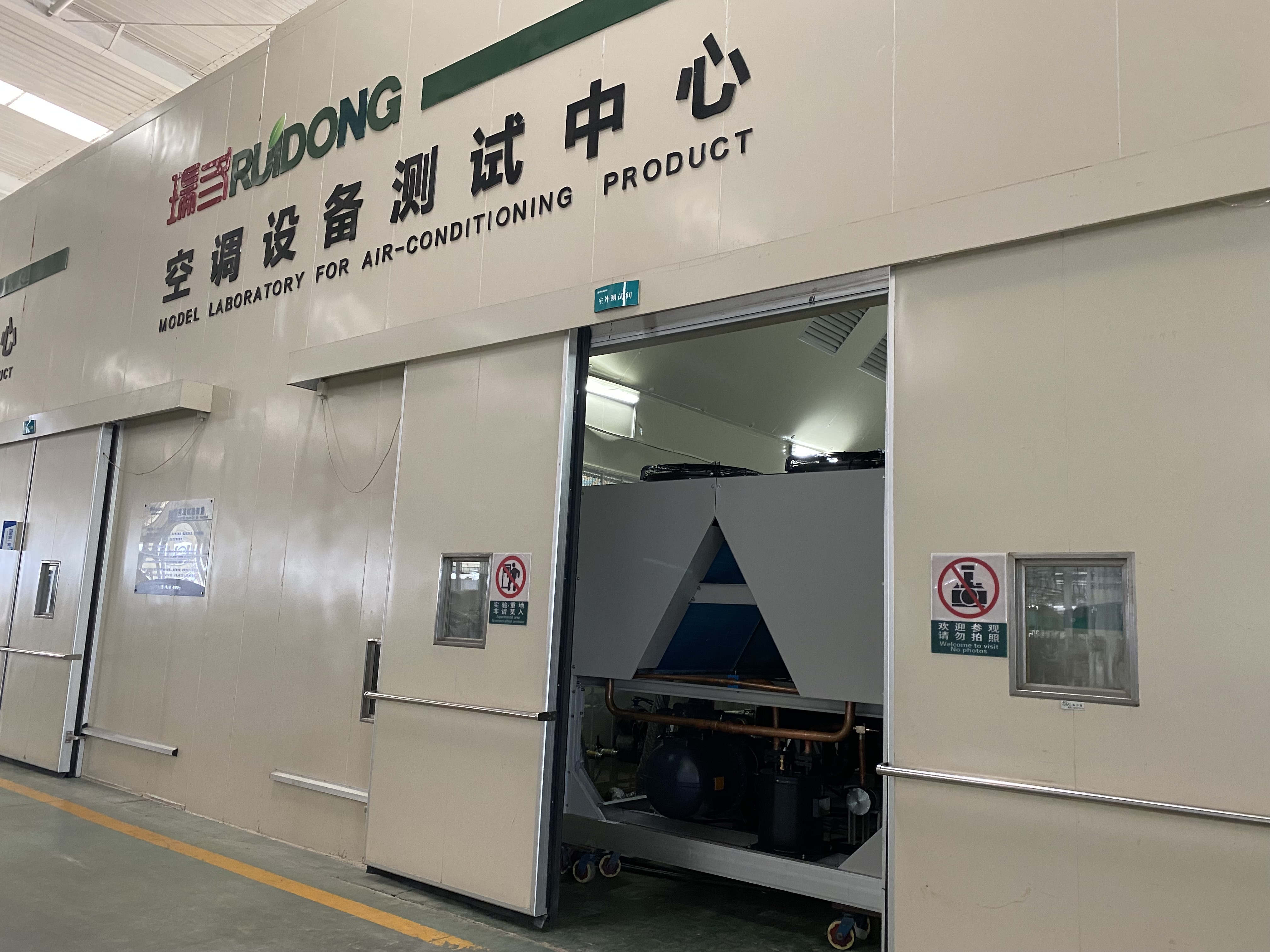

Our test center covers an area of 6,500 square meters, with a total investment of 50 million RMB, and is the largest and most complete testing facility in northern China. The test center conducts tests ranging from household air conditioner to the centrifugal chillers.

At our test center, we are capable of testing various types of units, including multi-connected units, air-cooled units, fan coil units, ceiling air handling units, modular air handling units, purified air conditioning units, water loop heat units, air-cooled module chillers, and air-cooled screw chillers.

|

 Data Sheet
