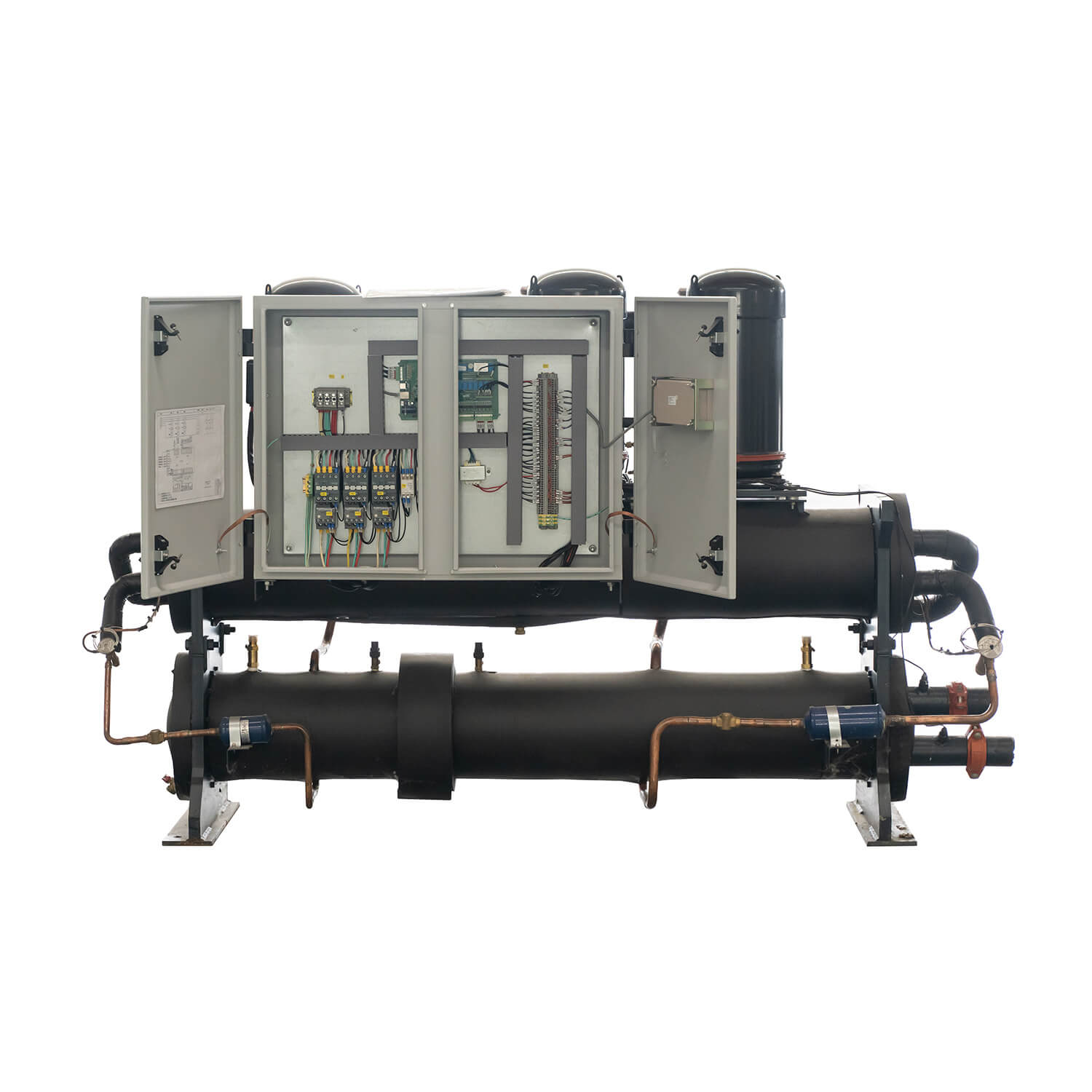

70kw-280kw Water Cooled Scroll Chiller and Heat Pump. Clients can purchase 1 to 6 compressors depending on the size and refrigeration requirements of their buildings. The equipment also adopts a high efficiency shell and tube type condenser, evaporator with an inner grooved copper tube, and temperature control system with PLC. In addition, the unit uses environmentally friendly R410A or R407c refrigerant.The design of multi -working conditions includes cooling towers condition, ground source condition, and water source condition, which can provide a flexibly of construction options for countries and regions with poor water resources.
The water cooled scroll chiller and heat pump utilizes a scroll type compressor and clients can purchase 1 to 6 compressors depending on the size and purpose of their buildings. The equipment also features a shell and tube type condenser, evaporator, and control system.
Compressor
The scroll type compressor features excellent liquid impact resistance. By installing the oil heating equipment, the water cooled scroll chiller and heat pump breakdown due to incomplete oil and fluorine separation is eliminated.
Evaporator
The shell and tube type evaporator is equipped with an inner grooved copper tube for higher heat exchange efficiency.
Condenser
(1) Condenser is shell and tube type. It features a single or multiple loop design.
(2) The manufacturing and testing of the steel shell both meet JB/T4750-2003 'Pressure Vessel for Refrigeration Equipment' standards.
Control system
The distribution control cabinet is composed of compressor starting equipment, a power protector and a micro-computerized controller. The micro-computerized controller can run stably and safely under a temperature range of -15℃ to 65℃. It is equipped with a RS-232 and RS-485 standard communication interface. It can receive a remote signal for starting up and shutting down.
Control methods
(1) The main engine of the water chiller is controlled based on the temperature of the return cold water or outflow.
(2) When the load reaches the set value, the machine will automatically stop. It can automatically start as well.
(3) The machine is equipped with an LCD display screen.
(4) The temperature of the inflow and outflow can be displayed and set. The running state and running time of the compressor can be controlled.
(5) Remote start and stop function.
(1) Products can be used for multi-operating conditions: cooling tower conditions, water sources and ground source conditions for users to choose flexibly.
(2) Can provide cooling, Heating, with Heat recovery function producing hot water for use.
(3) The microcomputer controller which has high levels of automation adopts electrical components from well-known brands. In addition, remote control can be realized because of RS-232 and RS-485 standard communication interfaces.
(4) Safety protection devices include safety valve, high and low voltage switch, anti-freeze protection, oil heater and temperature control etc.
(5) The products offered are certified by International bodies like ISO, CE, CRAA.
(6) Factory assembled, leak tested, evacuated, and internally wired. Every unit is fully tested before delivery and is ready for installation.
Water Cooler Scroll Chiller can provide single or multiple compressors for refrigeration requirements of different place. At the same time, flexible design and stable performance also make the water chiller apply to various places. Such as villas, hotels, high -rise buildings, hospitals and manufacturing, etc.
70kw-280kw Water Cooled Scroll Chiller and Heat Pump. Clients can purchase 1 to 6 compressors depending on the size and refrigeration requirements of their buildings. The equipment also adopts a high efficiency shell and tube type condenser, evaporator with an inner grooved copper tube, and temperature control system with PLC. In addition, the unit uses environmentally friendly R410A or R407c refrigerant.The design of multi -working conditions includes cooling towers condition, ground source condition, and water source condition, which can provide a flexibly of construction options for countries and regions with poor water resources.
The water cooled scroll chiller and heat pump utilizes a scroll type compressor and clients can purchase 1 to 6 compressors depending on the size and purpose of their buildings. The equipment also features a shell and tube type condenser, evaporator, and control system.
Compressor
The scroll type compressor features excellent liquid impact resistance. By installing the oil heating equipment, the water cooled scroll chiller and heat pump breakdown due to incomplete oil and fluorine separation is eliminated.
Evaporator
The shell and tube type evaporator is equipped with an inner grooved copper tube for higher heat exchange efficiency.
Condenser
(1) Condenser is shell and tube type. It features a single or multiple loop design.
(2) The manufacturing and testing of the steel shell both meet JB/T4750-2003 'Pressure Vessel for Refrigeration Equipment' standards.
Control system
The distribution control cabinet is composed of compressor starting equipment, a power protector and a micro-computerized controller. The micro-computerized controller can run stably and safely under a temperature range of -15℃ to 65℃. It is equipped with a RS-232 and RS-485 standard communication interface. It can receive a remote signal for starting up and shutting down.
Control methods
(1) The main engine of the water chiller is controlled based on the temperature of the return cold water or outflow.
(2) When the load reaches the set value, the machine will automatically stop. It can automatically start as well.
(3) The machine is equipped with an LCD display screen.
(4) The temperature of the inflow and outflow can be displayed and set. The running state and running time of the compressor can be controlled.
(5) Remote start and stop function.
(1) Products can be used for multi-operating conditions: cooling tower conditions, water sources and ground source conditions for users to choose flexibly.
(2) Can provide cooling, Heating, with Heat recovery function producing hot water for use.
(3) The microcomputer controller which has high levels of automation adopts electrical components from well-known brands. In addition, remote control can be realized because of RS-232 and RS-485 standard communication interfaces.
(4) Safety protection devices include safety valve, high and low voltage switch, anti-freeze protection, oil heater and temperature control etc.
(5) The products offered are certified by International bodies like ISO, CE, CRAA.
(6) Factory assembled, leak tested, evacuated, and internally wired. Every unit is fully tested before delivery and is ready for installation.
Water Cooler Scroll Chiller can provide single or multiple compressors for refrigeration requirements of different place. At the same time, flexible design and stable performance also make the water chiller apply to various places. Such as villas, hotels, high -rise buildings, hospitals and manufacturing, etc.
Q1: What is the size of the unit?
A1: The minimum size of the unit is 1350mm*1800mm*700mm. However, our products support customization and can design appropriate size according to your needs. So you don't worry.
Q2: Could you help us to recommend the model for our project?
A2: Yes, we have engineer to check the details and make the scheme for you. Based on the following: Cooling capacity, Refrigerant, Ambient temperature, Voltage, For what industry, The building drawing and Any other special requirements.
Q3: About our export ability?
A3:Ruidong products are exported to more than 50 countries and regions in the world, including Russia, Central Asia, Eastern Europe,Argentina, Southeast Asia, Indonesia, etc.The annual export value is $ 5 million.
Q4: Are you friendly for users with low purchases?
A4: We are professional air -conditioning manufacturers, support OEM, ODM, and ensure product quality. You can buy with confidence.
Q5: When will the order be shipped after payment?
A5: After the order is placed, it supports delivery within 7 working days. If the purchased products need to be customized, we need to communicate with the engineer before it can be determined.
