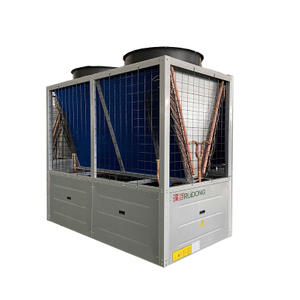

Product Description
Features:
New Appearance Design
For the units, it is of beautiful appearance, highlighted outlines, and powerful bisual impact.The zinc-Nickle alloy screws have been put into use for high corrosion-proof corrosion and reliability for the whole unit.
Expansive Operating Range
Modular units are designed to operate within a wide range of temperatures. With an ambient operation temperature of 6-35℃, these units can effectively function in various environmental conditions. Furthermore, the temperature range of the water outlet spans from 7-45℃, providing flexibility and adaptability to meet diverse user needs.
Master Module Design Freedom
Our product offers the unique advantage of free master module design. With this feature, any individual unit can function as the master module when connected to the wired controller. Our flexible design ensures seamless operation even in the event of a master unit failure.
Enhanced Efficiency of Shell and Tube Heat Exchanger
The innovative dual-flow design significantly enhances the heat exchange efficiency and overall capacity of the unit. With a specially designed header box and flow distributor, the refrigerant vapor-liquid mixture is evenly distributed after throttling, leading to improved heat exchanging capabilities of the shell and tube system. These enhancements ensure optimal performance and maximize the efficiency of the heat exchanger in various applications.
Enhanced Compatibility and Scalability
The modular units offer exceptional compatibility, allowing modularization of different models. Users have the freedom to mix and match units according to their specific requirements. Additionally, these units can be easily scaled up, with the capability to modularize up to 16 units in parallel. This powerful compatibility and scalability ensure optimal flexibility and efficiency in meeting varying project demands.
Low-noise Operation
By employing state-of-the-art active and passive noise reduction technologies, our product guarantees a low-noise operation, ensuring a tranquil and cozy user experience. These noise reduction mechanisms work together harmoniously to cultivate a serene atmosphere, elevating user comfort to new heights.
|

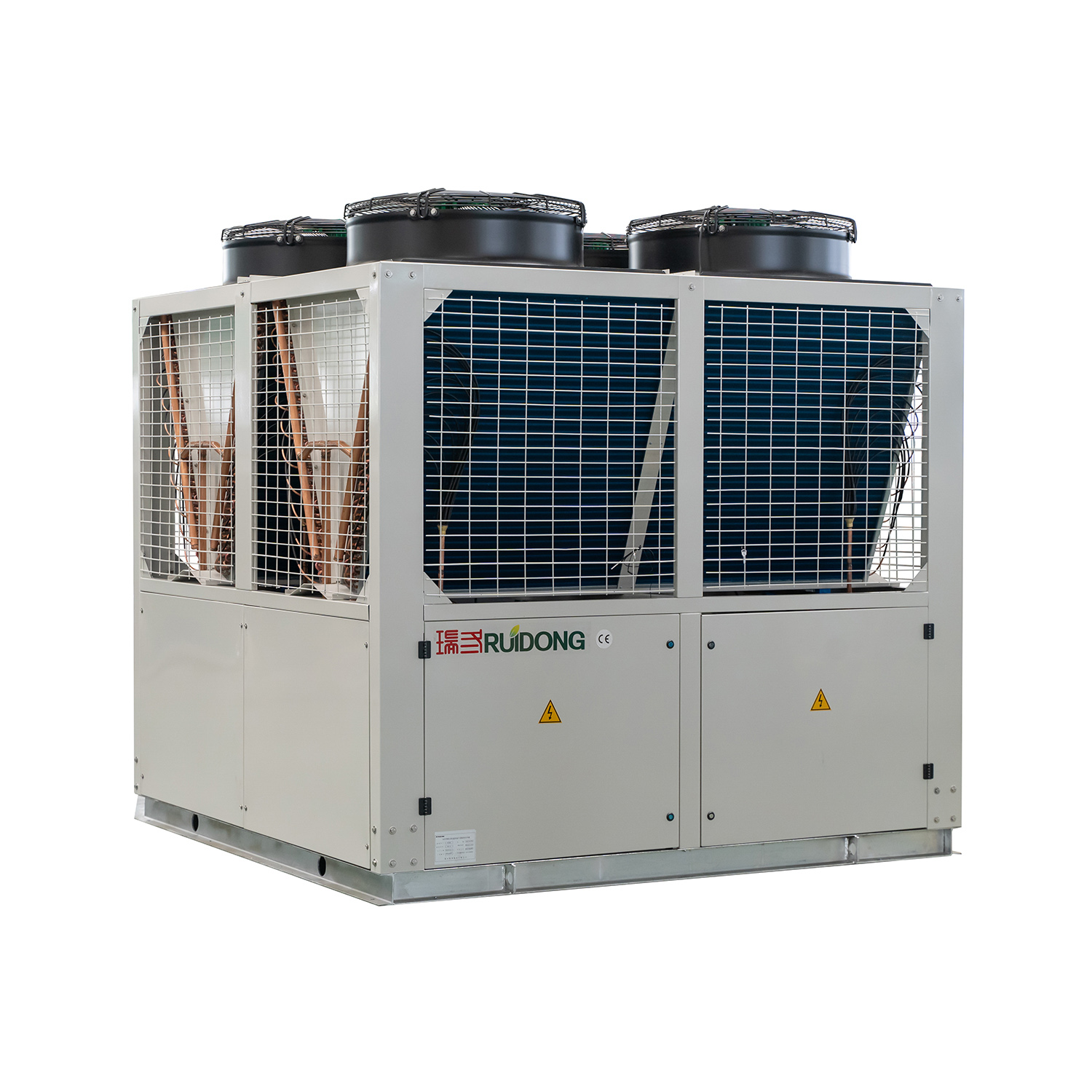

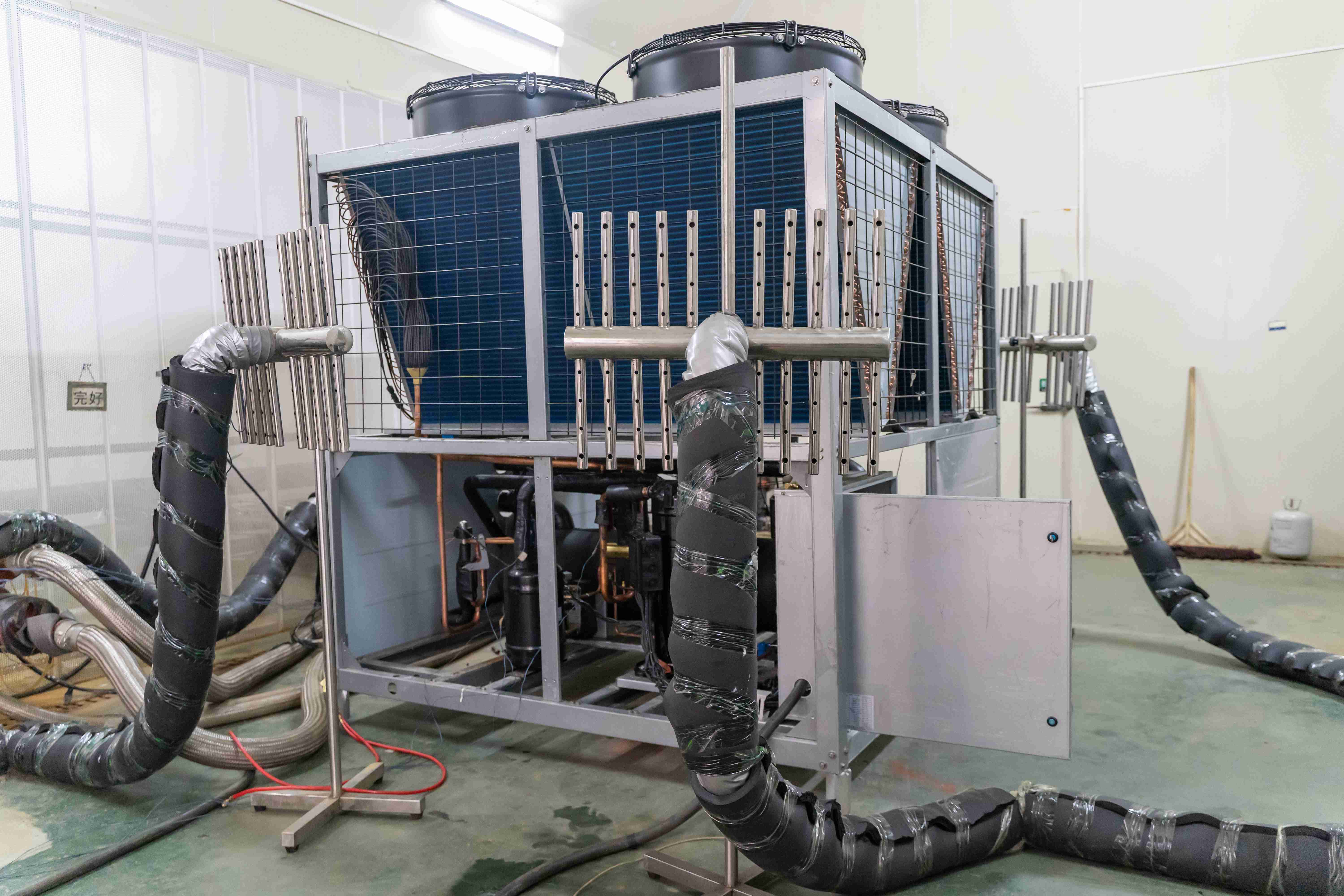

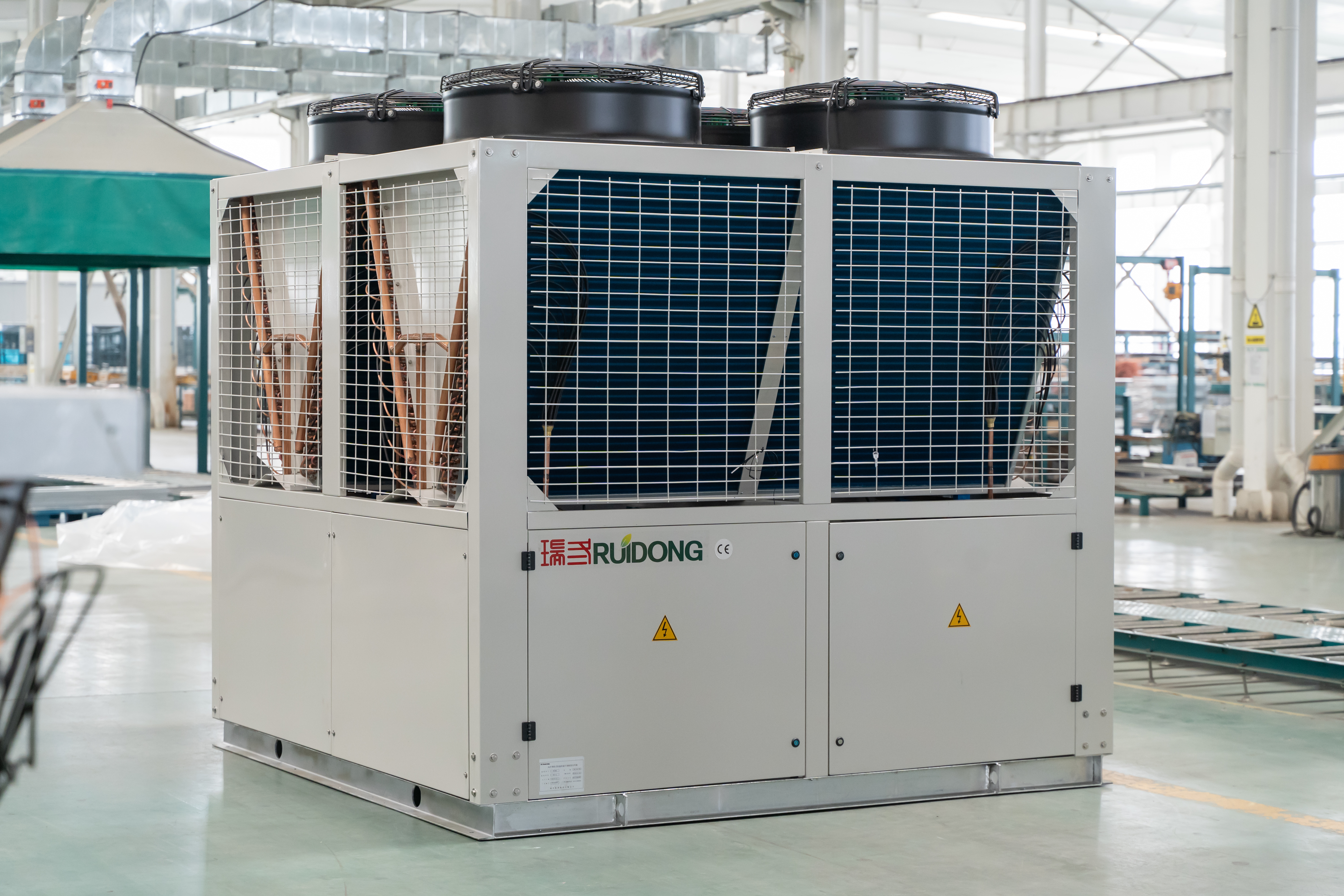

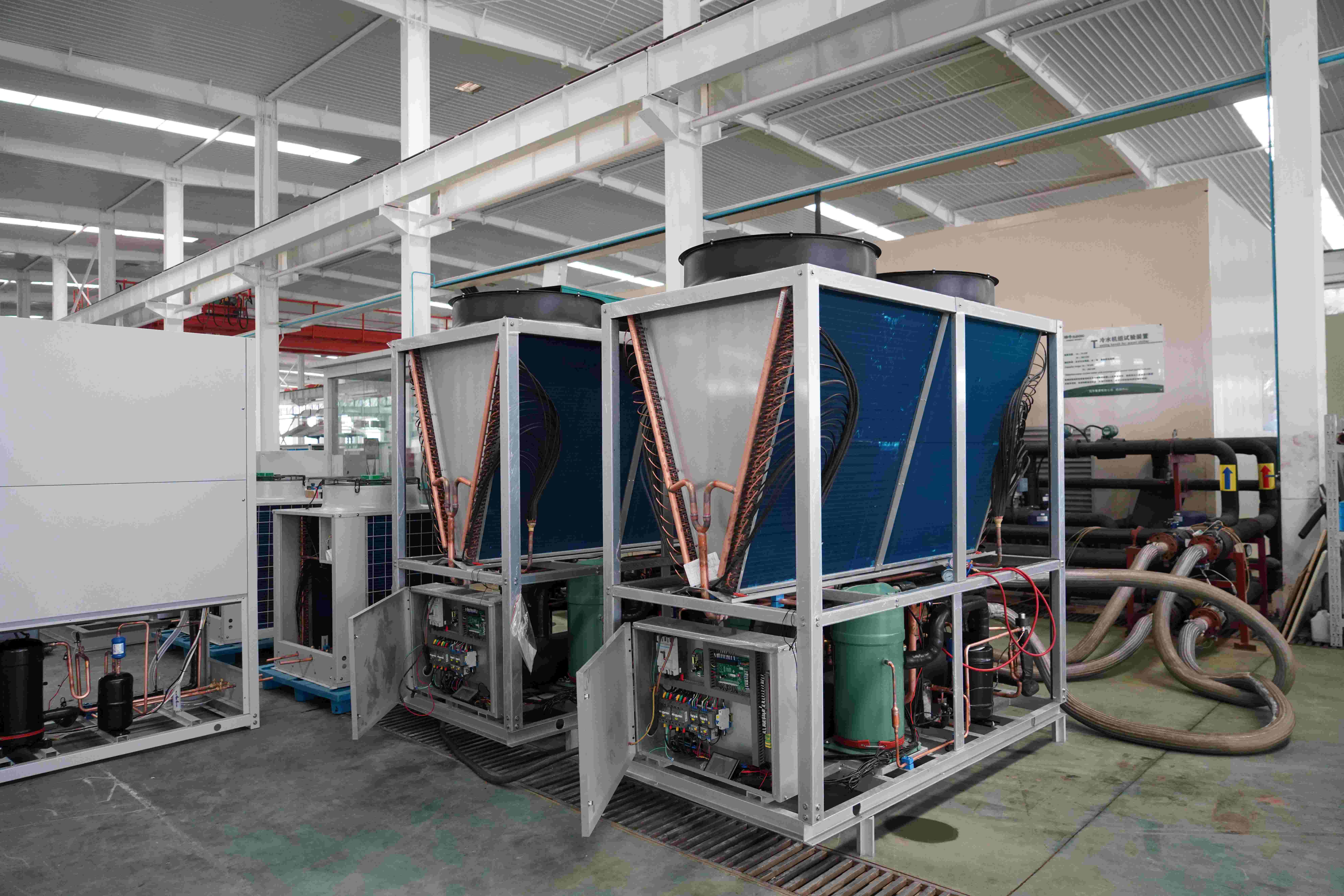

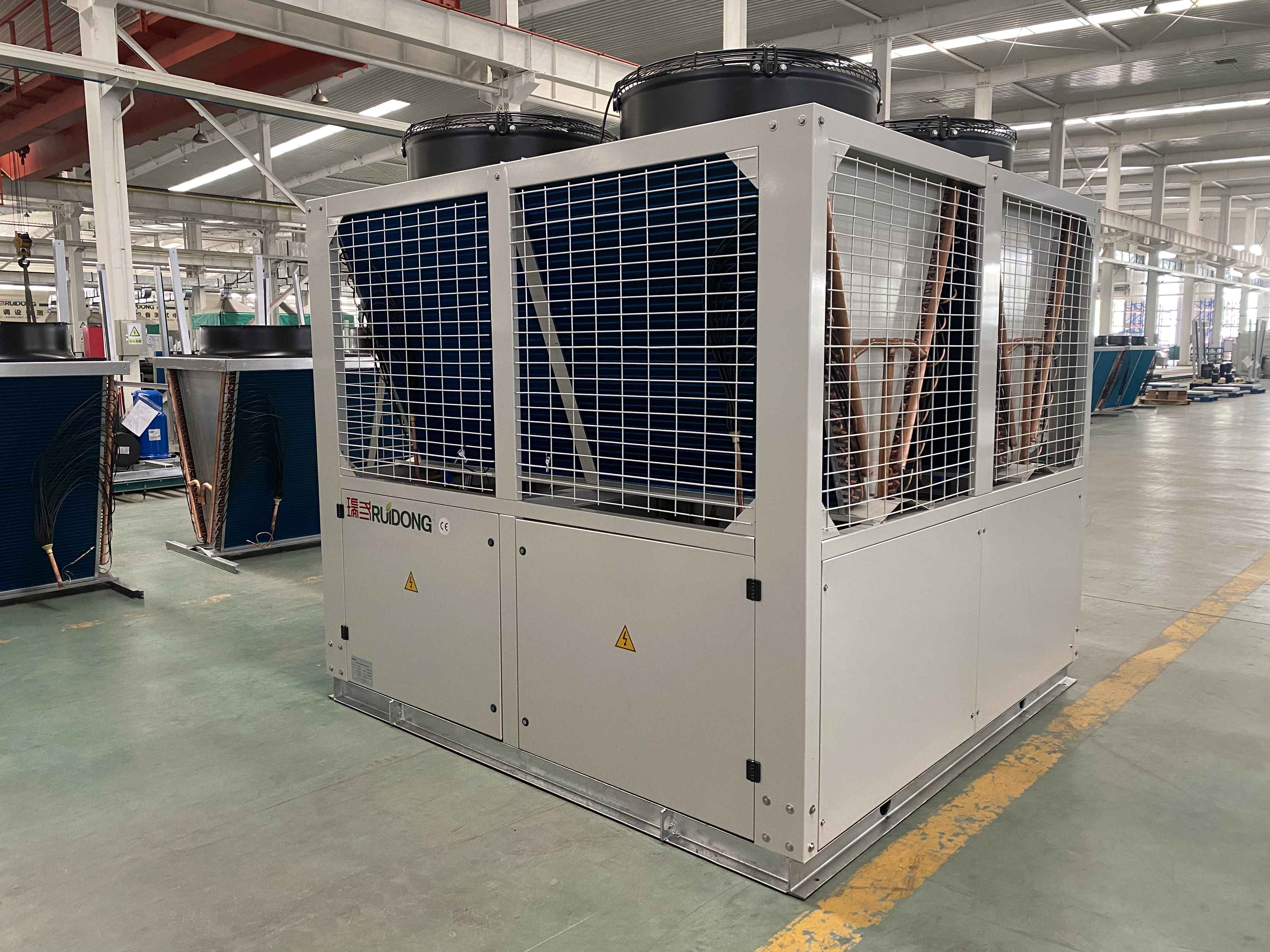

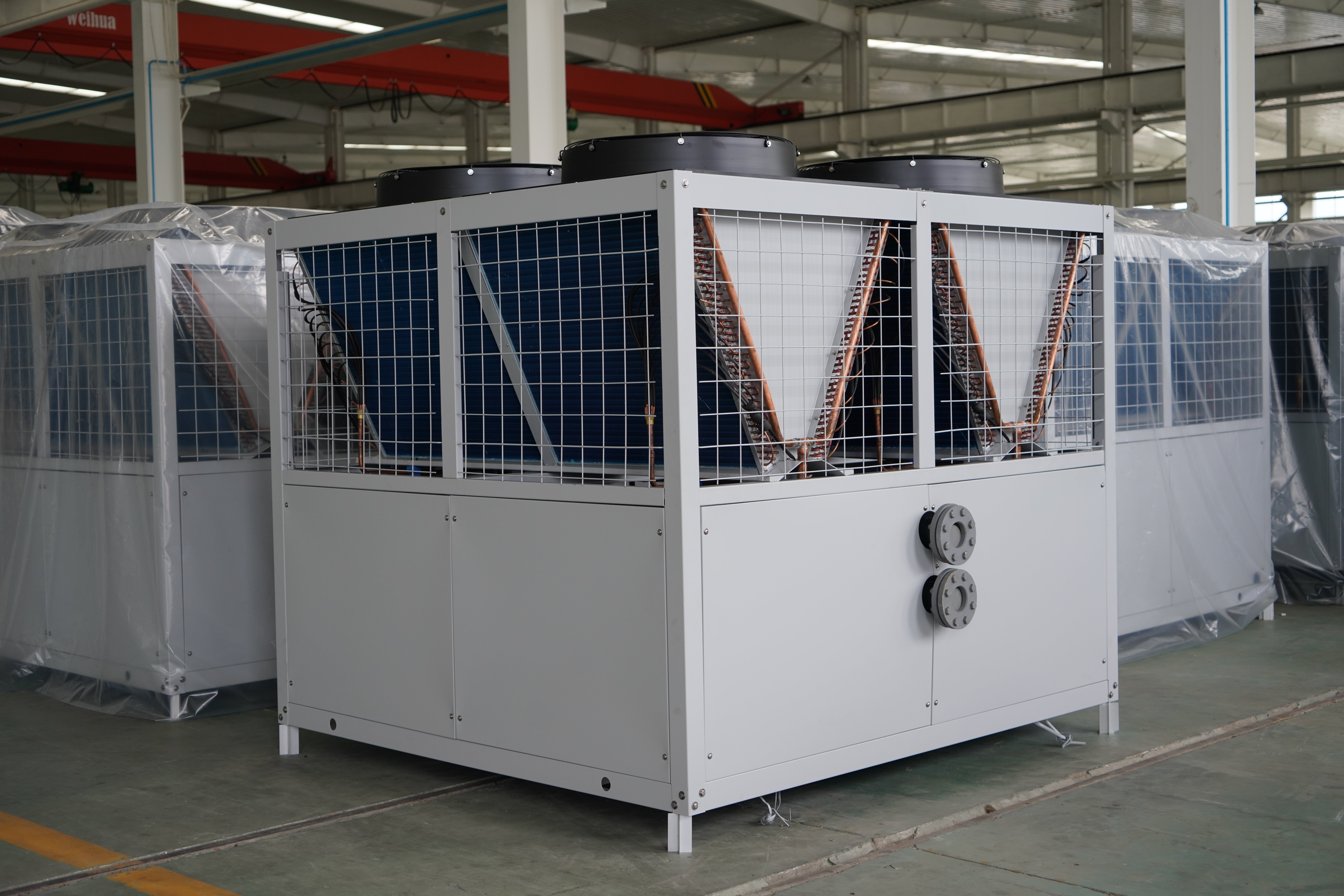

Product Detail
|
Data Sheet
| Product | Air cooed water chiller and heat pump- scroll compressor | ||||||||
| Type | Modular | ||||||||
| Model-RLSFWM-B (RLSFWM-(B)R) | 68 | 136 | 204 | 272 | 340 | 408 | 476 | ||
| Cooling capacity | kW | 68 | 136 | 204 | 272 | 340 | 408 | 476 | |
| Cooling inpurt power | kW | 21.1 | 42.2 | 63.2 | 84.3 | 105.4 | 126.5 | 147.6 | |
| Running current | A | 41.2 | 82.4 | 123.6 | 164.8 | 206 | 247.2 | 288.4 | |
| Heating capacity | kW | 70 | 140 | 210 | 280 | 350 | 420 | 490 | |
| Heating power | kW | 22.1 | 44.1 | 66.2 | 88.2 | 110.3 | 132.4 | 154.4 | |
| Running current | A | 39.5 | 79 | 118.5 | 158 | 197.5 | 237 | 276.5 | |
| Max. running current | A | 48.2 | 96.4 | 144.6 | 192.8 | 241 | 289.2 | 337.4 | |
| Cable diameter (copper wire distance ≤20 meters) | mm2 | 3*16+2*10 | (3*16+2*10)*2 | (3*16+2*10)*3 | (3*16+2*10)*4 | (3*16+2*10)*5 | (3*16+2*10)*6 | (3*16+2*10)*7 | |
| Compressor | Type | Hermetic scroll type | |||||||
| Quantity | 2 | 4 | 6 | 8 | 10 | 12 | 14 | ||
| Power voltage | 3N-380V-50HZ | ||||||||
| Start mode | Direct Start | ||||||||
| Regrigerant | Type | R410a/R22 | |||||||
| Charge (kg) | 11.5*2 | 11.5*4 | 11.5*6 | 11.5*8 | 11.5*10 | 11.5*12 | 11.5*14 | ||
| Control | Electronic expansion valve (EXV) | ||||||||
| Evaporator | Type | Shell & tube type | |||||||
| Water Pressure drop | kPa | 70 | |||||||
| Water pipe Dia.DN | DN50 | DN50*2 | DN50*3 | DN50*4 | DN50*5 | DN50*6 | DN50*7 | ||
| Water flow | m3/h | 11.7 | 23.4 | 35.1 | 46.8 | 58.5 | 70.2 | 81.9 | |
| Condenser type | Internally threaded copper tube & hydrophilic aluminum fins | ||||||||
| Dimension | L | mm | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 |
| W | mm | 1080 | 2160 | 3240 | 4320 | 5400 | 6480 | 7560 | |
| H | mm | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 | |
| Net weight | kg | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 4900 | |
| Operation weight | kg | 760 | 1520 | 2280 | 3040 | 3800 | 4560 | 5320 | |
| Noise | dB(A) | 73 | 73 | 73 | 74 | 74 | 74 | 74 | |
| Main protection measures | 1. High &low voltage protection; 2. Anti-freezing protection; | ||||||||
| 3. Temperature control; 4. Owe anti-phase protection; | |||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; | |||||||||
| 7. Built-in motor overheating protection; 8. Over-current protection; | |||||||||
| 9. Safe valve; 10. Check valve | |||||||||
| Remarks: | 1.Cooling standard working conditions:ambient temperature 35℃DB/24℃WB; cold water inlet temperature 12℃，outlet temperature 7℃ | ||||||||
| 2.Heating standard working conditions:ambient temperature 7℃DB/6℃WB; cold water inlet temperature 40℃，outlet temperature 45℃ | |||||||||
|
