Product Manual - Air Cooled Scroll Type Water Chiller and Heat Pump.pdf

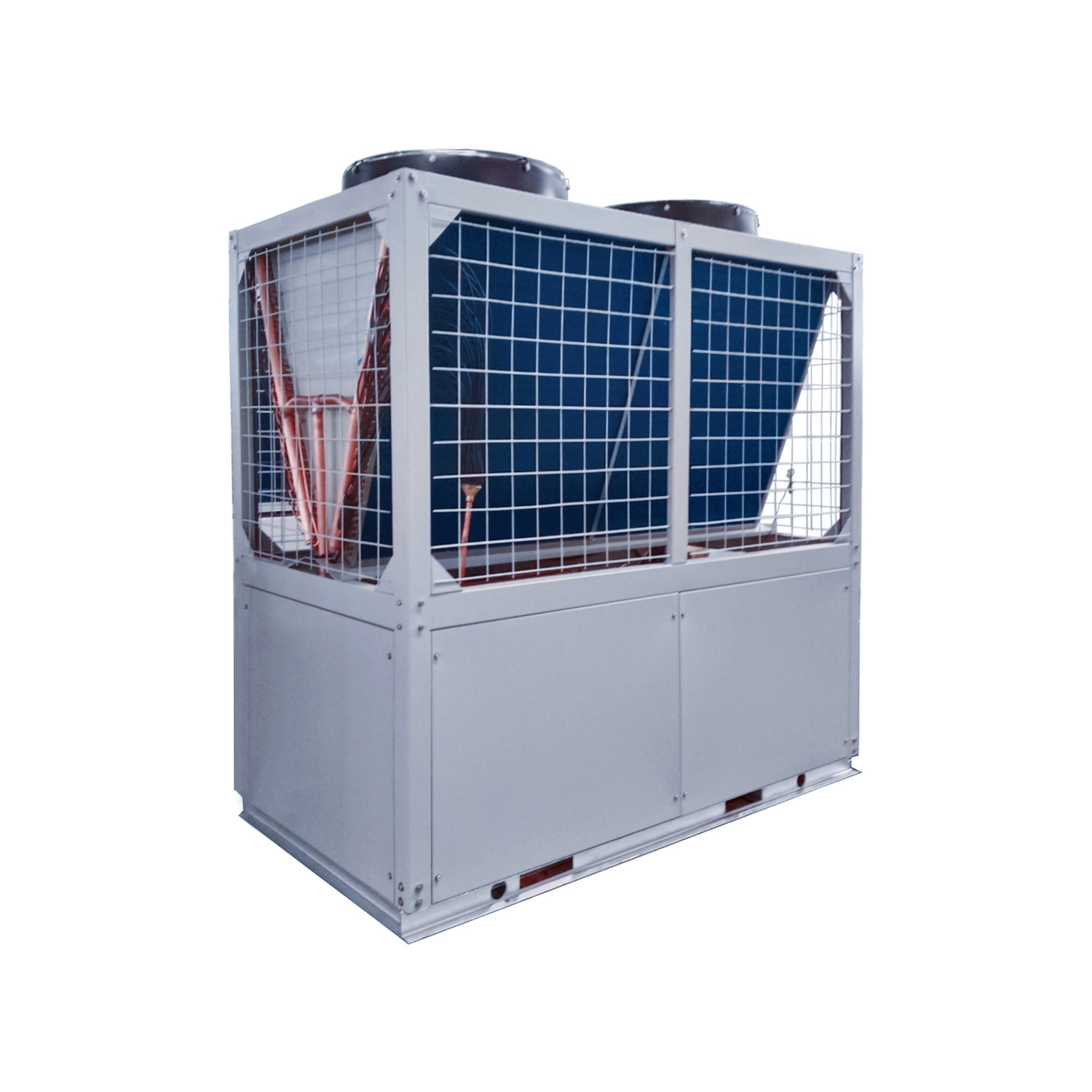

Air-cooled scroll chiller and heat pump unit, the refrigerants are R22, R407c, R410a, the units are divided into ordinary module/air supply enthalpy increase module/ultra-low temperature module to meet different environmental requirements.
1. Flexible Options:To cater to varying ambient temperature demands, three models are offered: standard, air-supply enthalpy increase, and ultra-low temperature, ensuring suitability across a range of climates.
2. Modular Architecture: The design allows for the addition or removal of module units as per the evolving needs of the users, providing flexibility in system expansion or reduction.
3. Broad Cooling and Heating Range: The units are capable of delivering cooling outputs from 60kW to 480kW, accommodating a wide spectrum of cooling requirements.
4. Space Efficiency: The absence of cooling towers and water pumps simplifies the system structure and minimizes the spatial footprint, making it ideal for installations in confined areas.
5. High-Performance Compressors: Equipped with renowned brand scroll compressors, these units are known for their high efficiency, low noise levels, minimal vibration, reliable operation, and extended service life.
6. Advanced Control System: The microcomputer control system, featuring an RS485 interface, enables remote operation and real-time monitoring of the unit's various parameters and operational status.
7. Enhanced Reliability: Each unit incorporates multiple compressors and independent refrigeration circuits, enhancing the system's standby capabilities and overall reliability.
8. Comprehensive Protection: The units come with a suite of protective features, including high and low pressure protection, chilled water anti-freeze protection, power phase sequence and phase loss protection, water flow shortage protection, and compressor motor overheat protection.
9. Innovative Evaporator Design: Utilizing copper tube sleeve hydrophilic aluminum foil, seamless copper tubes, and a V-shaped layout, the evaporator design optimizes airflow and heat transfer performance.
10. Low Noise Operation:Incorporating low noise axial flow fans and optimized ductwork design, the units operate with reduced noise levels, minimizing acoustic disturbance.
11. Versatile Refrigerant Options: Compatible with various refrigerants such as R22, R410A, and R407C, the units meet diverse environmental and energy efficiency standards.
12. Precision Throttling Components:The use of electronic expansion valves ensures precise throttling control, optimizing the refrigeration system's efficiency.
13. Wide Applicability: The units are designed to operate effectively in different climates, making them particularly suitable for regions with water scarcity or low winter temperatures.
These features render air-cooled scroll chillers an excellent choice for commercial and industrial refrigeration and heating applications.
Air-Cooled Scroll Chiller Units are well-suited for a variety of applications, including:
1. **Commercial Buildings**:
- Perfect for providing comfortable air conditioning in shopping malls, office buildings, and other commercial venues.
2. **Industrial Facilities**:
- Ideal for industrial processes that demand precise temperature and humidity control, such as those in the pharmaceutical, food processing, and chemical sectors.
3. **Data Centers**:
- Essential for maintaining precise temperature and humidity levels, ensuring the stable operation of servers and other equipment.
4. **Educational Institutions**:
- Schools and training centers can benefit from HVAC systems that maintain conducive learning environments.
5. **Medical Facilities**:
- Hospitals and clinics can rely on these units to provide comfortable and hygienic indoor conditions.
6. **Hotels and Resorts**:
- Enhance the guest experience by ensuring consistent temperature control throughout the premises.
7. **Exhibition and Convention Centers**:
- Effective air conditioning solutions for large-scale exhibition and convention centers.
8. **Sports Facilities**:
- Stadiums and fitness centers can utilize these units to ensure the comfort of spectators and athletes.
9. **Transportation Hubs**:
- Airports, train stations, and other transportation centers can provide comfortable environments for passengers.
10. **Residential Areas**:
- Suitable for providing centralized cooling and heating services to residential complexes.
11. **Agricultural Applications**:
- Used in agricultural greenhouses to regulate temperatures for optimal plant growth.
12. **Specialized Environments**:
- Laboratories and testing centers with specific temperature and humidity requirements can benefit from the precision of these units.
Air-Cooled Scroll Chiller Units are selected for their high energy efficiency, adaptability, and ease of operation, making them an ideal choice for the applications listed above.
